Banks Power Ram-Air Differential Cover Kit (2017-2024 Super Duty with Dana M275 Rear Axle 14 Bolt)
Banks Power Ram-Air Differential Cover Kit (2017-2024 Super Duty with Dana M275 Rear Axle 14 Bolt)
Regular price
$375.00 USD
Regular price
Sale price
$375.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Fitment Alert:
Does Not Fit F-350 DRW
Does Not Fit 2023-24 High-Output

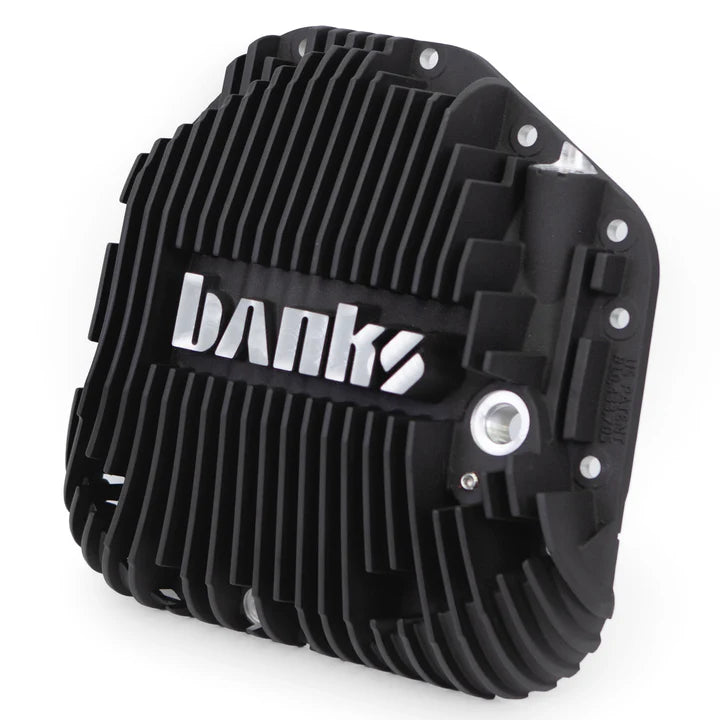

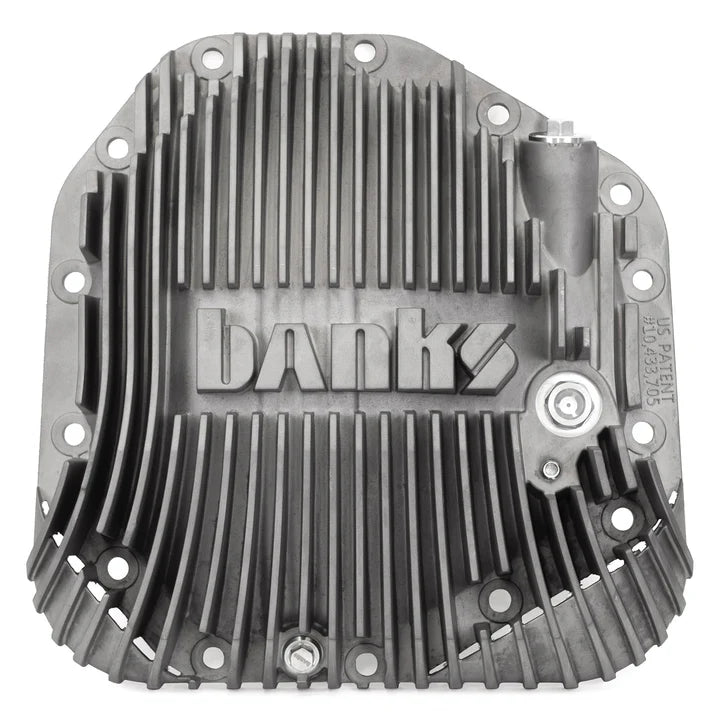

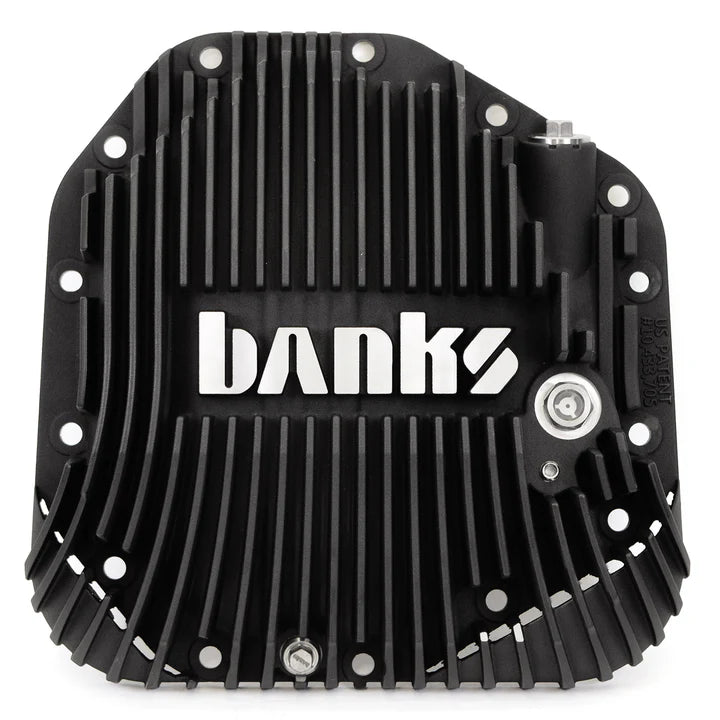

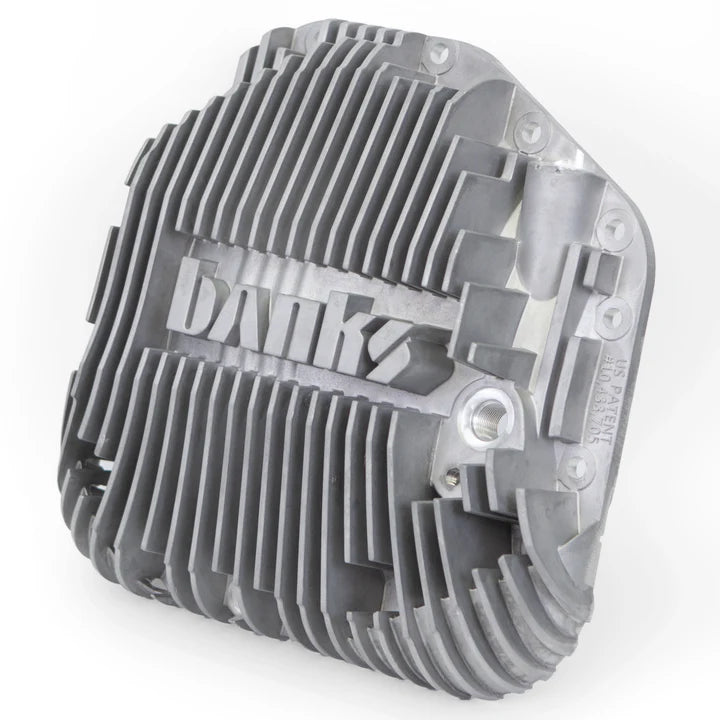

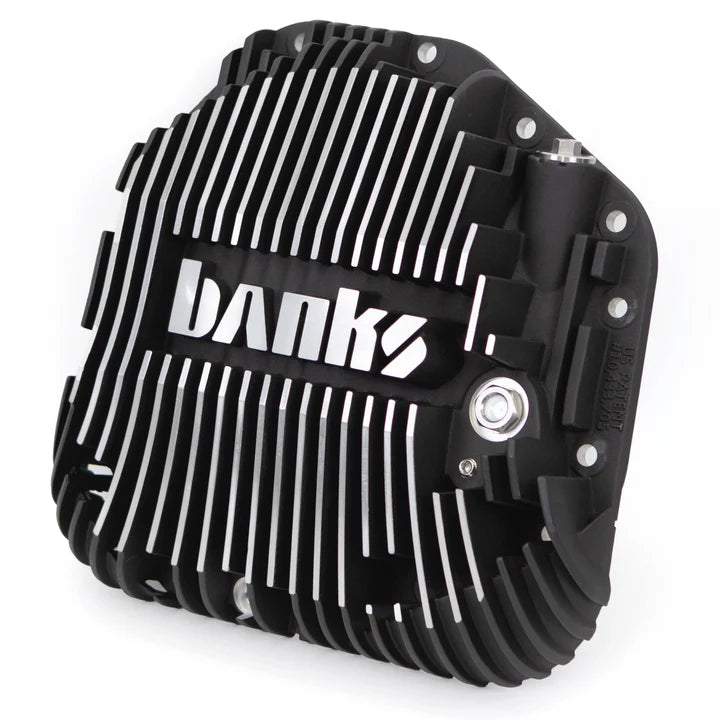

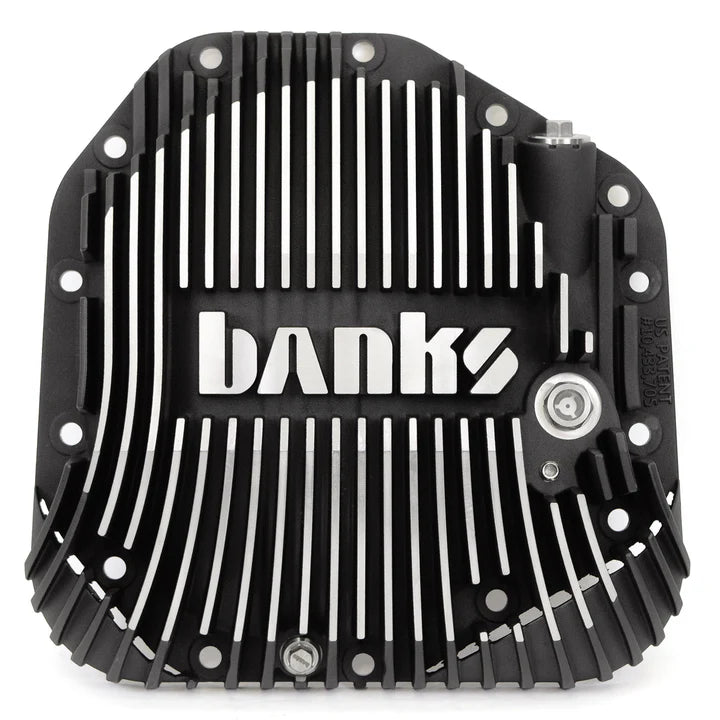

Banks Ram-Air® differential cover extends lubrication life and retains fuel economy. Thanks to its superior fluid and aerodynamics, the Ram-Air® Cover out-performs stock and flat-back high-capacity covers and does so with less lubricant. Increased distance between service intervals and less lubricant means you'll save money while extending gear life.
US Patent # 10,443,705 B1
CARB E.O. Not Required
Key Features
Key Highlights.
-
New patented design features Ram-Air scoops for fastest cooling
- Provides cold high velocity air, overcoming “dead air zone” behind differential
- Scoops force air up and into massive heat radiation fins
- Engineered to break-away if snagged on an obstacle
- Banks cools 5X better than flat-back covers in on-road towing tests over the same road, same weather, operator and vehicle
- Cools 118% better than flat-backs in 200hp 60mph sustained tests
- Dry-mount high-pressure silicone O-ring seal. No messy RTV clean!

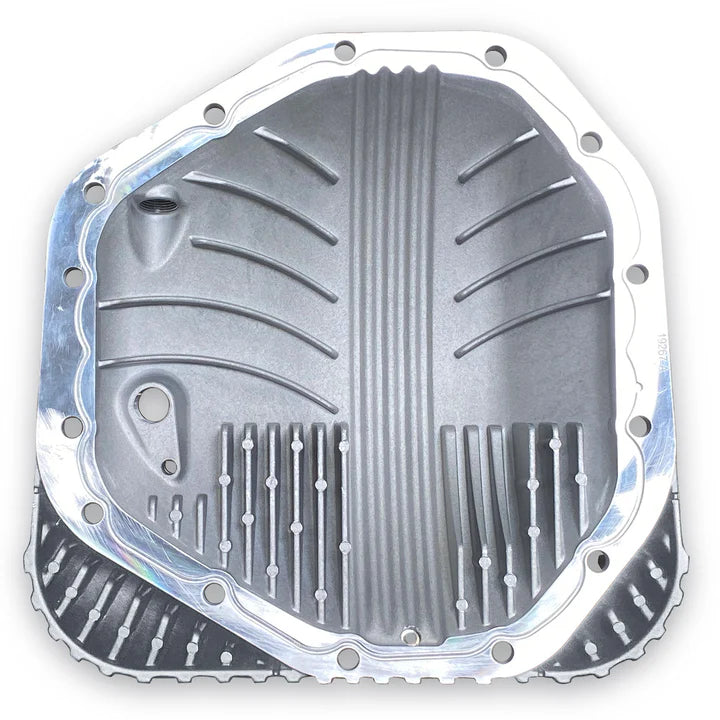

- Internal fins transfer heat through the cover into the external fins
- Clears spare tire heat shield, Panhard bars and other components
- Does not sacrifice any ground clearance
- Limited Lifetime Warranty
- Axle tube lubricant guides directs lube to bearings w/o overfilling
- Cover mates flush with differential housing for smooth fluid flow
- Ring gear raceway controls fluid flow to the pinion and bearings
- Low fluid aeration means longer fluid life
- Weight: 11.8 lbs
- External heat radiation fin count: 23
- Internal heat absorption fin count: 24
- Dimensions: 13.7 in X 13.5 in X 3.4 in
- Fasteners: 14 x stainless steel M10 flange hex bolts
- Material: A380 aluminum diecast with CNC machined surfaces
- Magnetic drain plug
- Magnetic fill port plug
- Angled fill port for easy access
- No need to remove cover to change fluid
- 1/2 in sight glass with contrast screen (visual aid) and Viton seal
- Overland Industries Recommends Schaeffer's Supreme Gear Lube 75W-140
- Fill level depends on model year: (About 3.61 Qts Fill To OEM Level)
