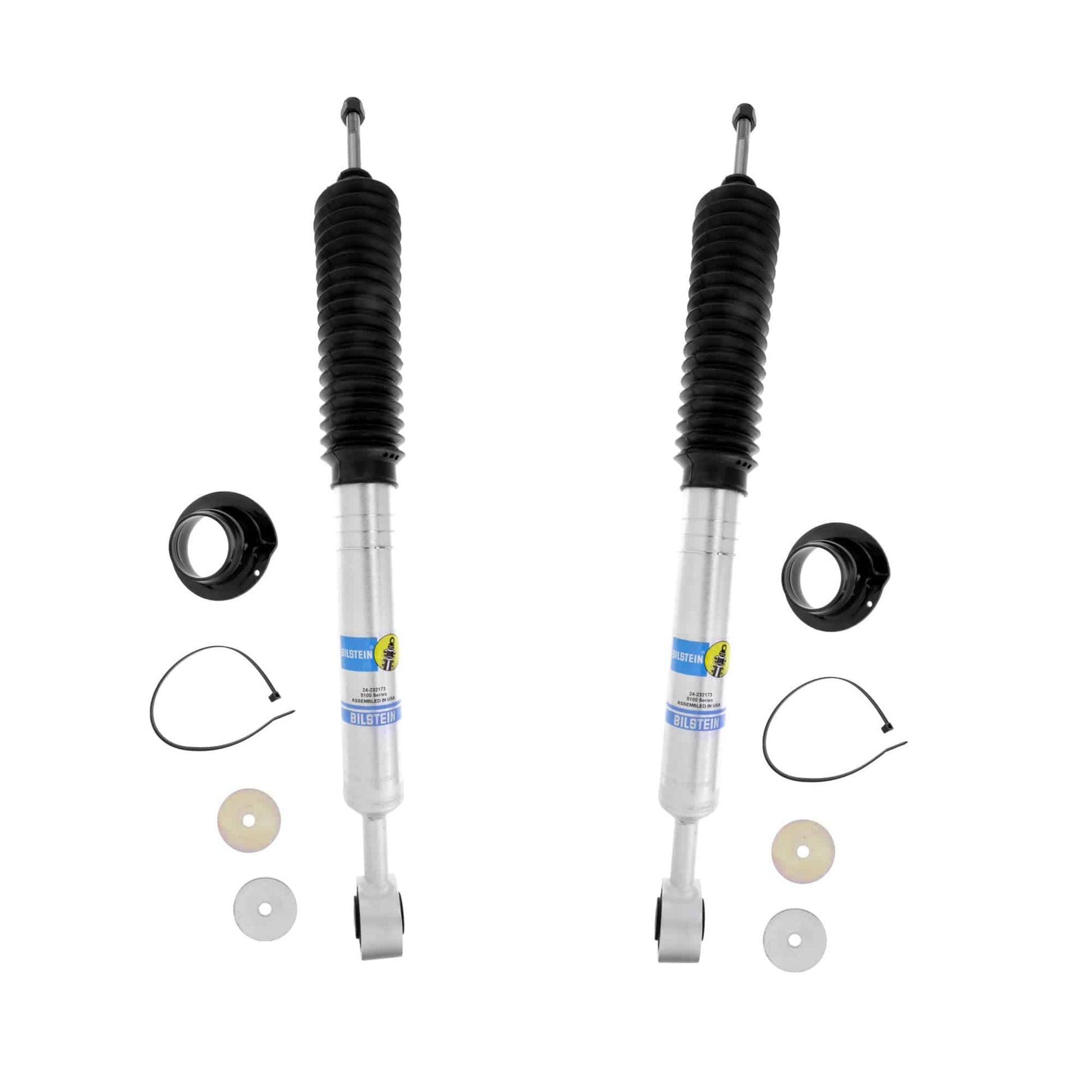

Bilstein 5100 Series Front Lift Kit 0.87-2.28" (2007-2021 Tundra)

Bilstein 5100 Lift Kit 0.87-2.28" Front Adjustable Shocks | 2007-2021 Toyota Tundra (24-232173)

The Front Bilstein B8 5100 Series (Ride Height Adjustable) shock absorbers are designed to Increase wheel travel, improve handling, and level out the front of your 2007+ Toyota Tundra. Due to 46mm Piston and Self-adjusting Deflective Disc valving the Bilstein 5100 Shocks instantly adjust to surface changes for maximum vehicle motion control.

• Rig Position: Front
• 0.875-2.28" of Lift Height Adjustment
• 46mm monotube design ensures consistent, fade-free performance in all conditions.
• Increases suspension travel
• Extended Length: 24.12"
• Collapsed Length: 17.77"
• Alternative to coil spring spacers
• Utilizes stock front coil springs and OEM Upper Mounts
• Direct, bolt-on replacement
• Warranty information: Limited Lifetime Warranty
• Install Instructions: Download
• MPN: 24-232173
• Fits All: 2007+ Toyota Tundra except TRD Pro Models

Height Adjustment Settings:

1st circlip: 0.87" (22mm) Average Lift**
2nd circlip: 1.57" (40mm) Average Lift**
3rd circlip: 2.28" (58mm) Average Lift**
** Ride heights indicated are typical. Actual ride height is influenced by which factory suspension the vehicle is equipped with and its condition; optional equipment and accessories on your vehicle, and other vehicle modifications such as replacement coil springs, wheel and tire combinations, etc.
