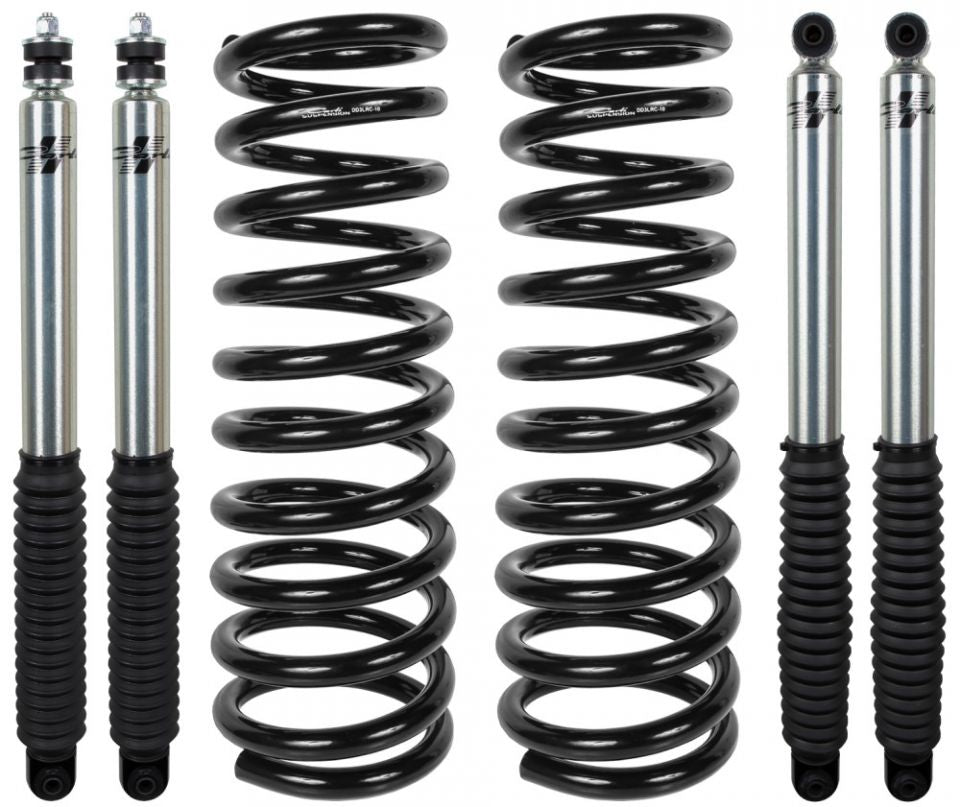

Carli 3" Starter Suspension System (2010-2013 Ram 2500/2010-2012 Ram 3500)

The Carli Starter system was developed for our customers who are looking to dramatically increase the street drive comfort of the Dodge Ram 2500 and 3500 series trucks, and who also want an increase of light off-road driving performance. This system has several key performance features that will substantially increase the capability of the vehicle without breaking the bank.

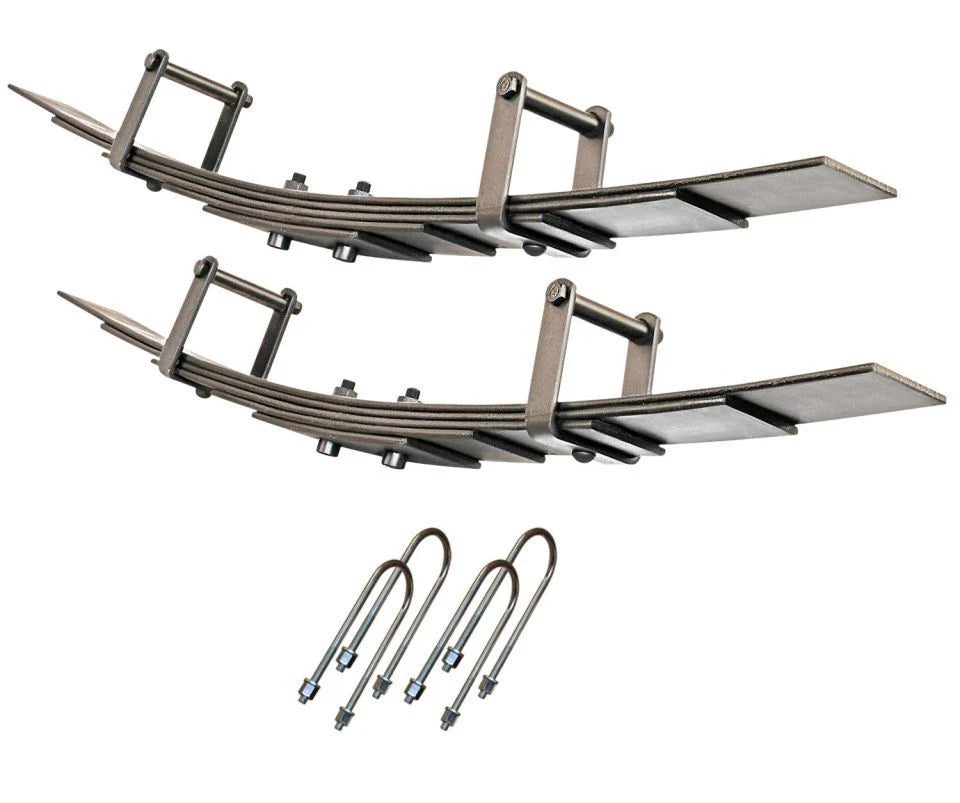

The Starter System includes the Front Leveling Kit and options for a rear Add-A-Pack and matching Rear Shocks. This system is designed for people seeking a leveled vehicle with more performance and ride quality than a generic spacer lift; then, adding the rear kit to further the ride quality improvement. The Carli Signature Series front and rear shocks have been custom-tuned, in-house by Carli, for superior ride quality.

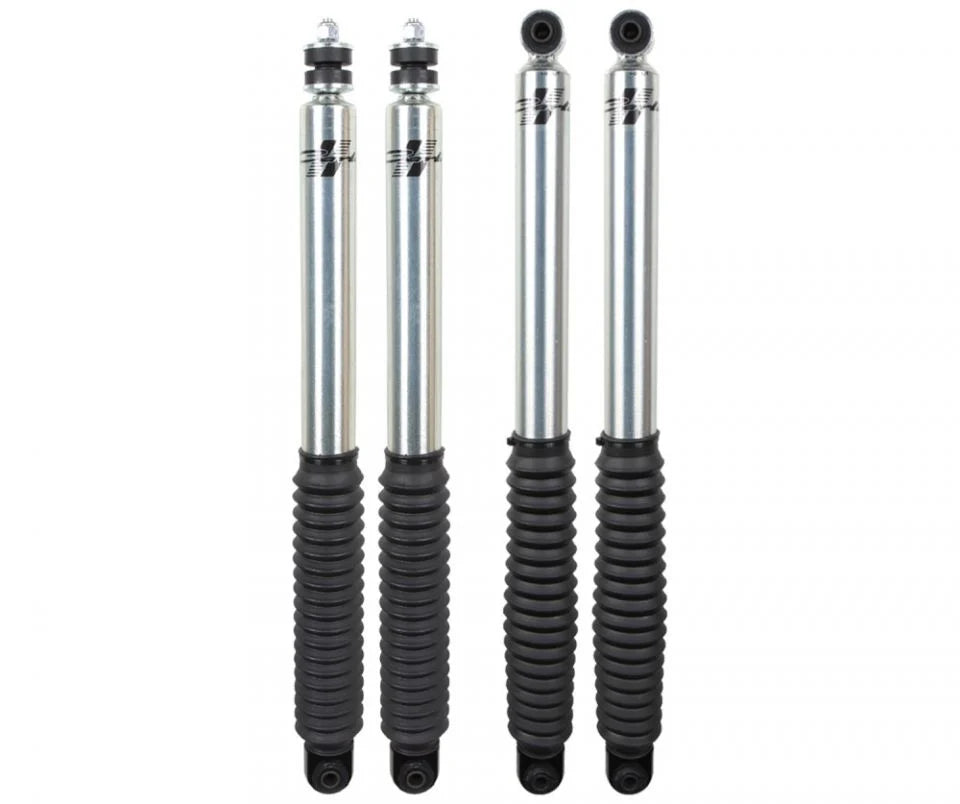

CARLI SIGNATURE SERIES SHOCKS

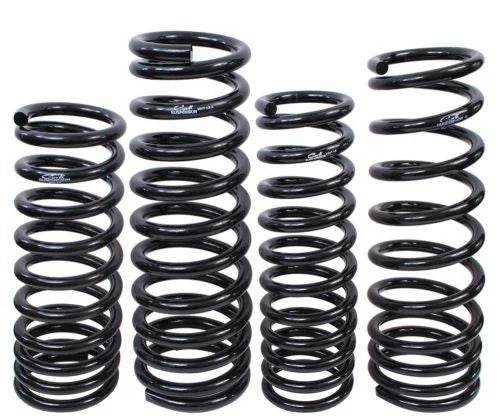

Your truck will sit 2.5"-3" higher in the front with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The included front and rear Carli Signature Series Shocks are longer to accommodate extended travel. When designing the shocks, Zinc plating, Clear Coat for corrosion resistance, and quality bushings were a must; finished off with boots to protect the shafts, Carli backs them with a limited lifetime warranty to ensure their quality is as unbeatable as their ride quality at this price point.

CARLI RECOMMENDATIONS

When lifting the front end of a straight-axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver's side 3/4" and back toward the cab 1/2". Although this is perfectly operable, we recommend the purchase of an adjustable track bar to shift the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application, and a set of extended control arms to shift the axle forward to its new center of travel.

WHEEL AND TIRE FITMENT

OPTIONAL SWAY BAR END LINKS OR TORSION SWAY BAR

When pairing added down-travel with the taller ride height, the position of the factory and front sway bar will need to be altered as well. For this, we offer two options; extended, Sway Bar End Links or the replacement Torsion Sway Bar. The End links are equipped with 1/2" FK Rod-Ends and in-house machined 17-4 stainless bodies that are extended over stock to reset the sway bar engagement point. Factory pillow bushings are re-used to assemble the sway bar to the lengthened link. Carli's Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8" FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension (in close competition with the full progressive leaf spring upgrade offered in the higher-end systems).

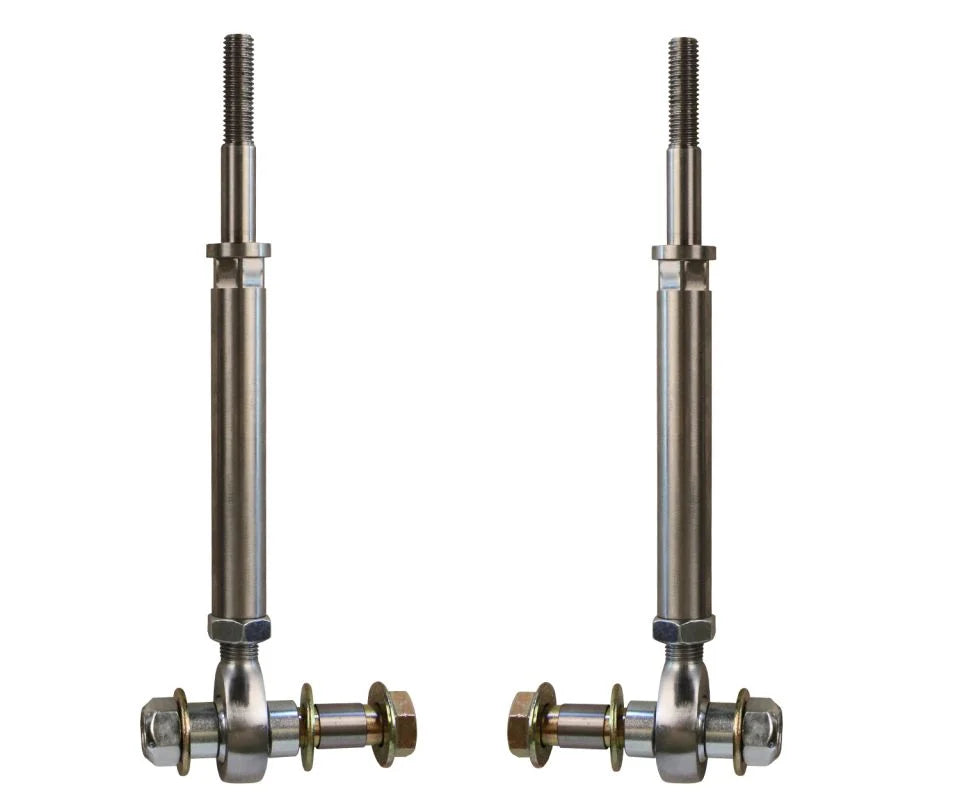

SWAY BAR END LINKS 10MM SPECIFICATIONS:

• In-house machined 17-4 stainless steel
• 1/2" FK Chromoly Rod-End
• For Control Arm trucks with 0-3" of front lift
• For Control Arm trucks with Sway Bar Drop and 6" of front lift
