Carli Suspension

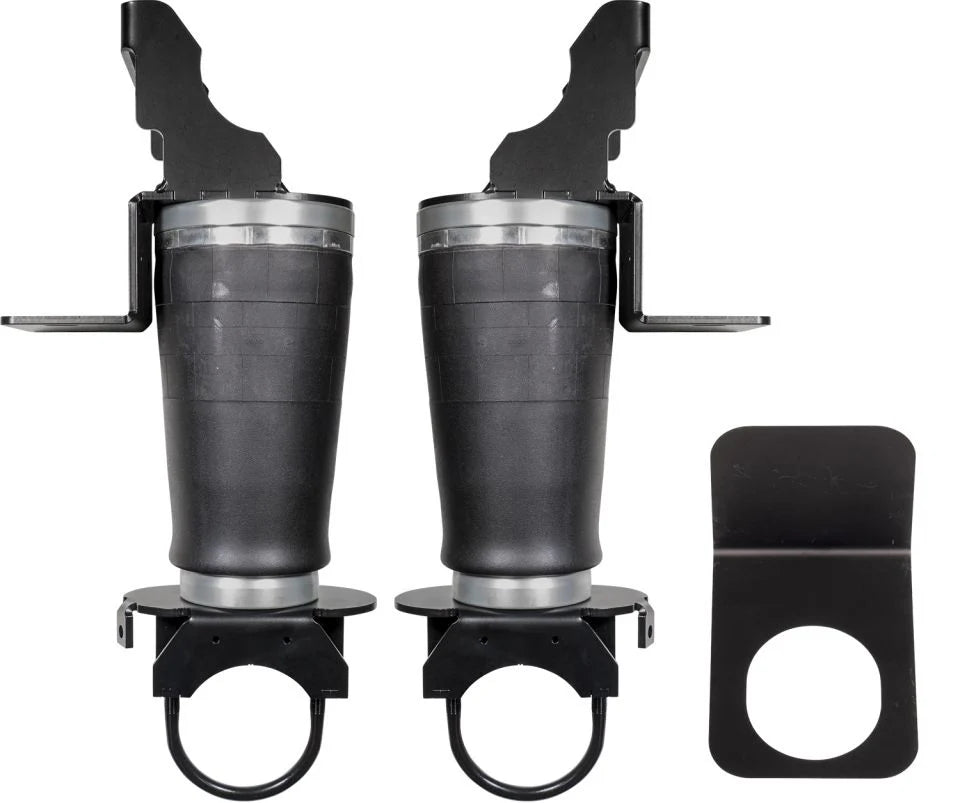

Carli Long Travel Airbag System (2003-2013 Ram 2500/3500)

Carli Long Travel Airbag System (2003-2013 Ram 2500/3500)

Regular price $1,070.00 USD
Regular price Sale price $1,070.00 USD
Sale Sold out
Shipping calculated at checkout.

You want the best of both worlds for your heavy duty Ram......the ability to tow a load as the truck was intended, but also get dirty off road on the weekend. This system allows full axle articulation when aired out. You can now tow and haul more, ride level at any weight range and still go play in the dirt. Simply air up for hauling / towing and drop the air when you want off road performance.

We combine a rolling sleeve bag and tapered piston design to provide 2,000lbs. of payload capacity per bag at 100psi max working load. These bags are offered for both 1″-2″ rear lifts and 4″ Rear lift configurations (adds the listed spacer to the bag system) to suit our 3″ and 6″ front suspension systems.

Combining off road performance while increasing the load capacity and towing capability of your truck, with quality construction always in mind, built out of 1/4 inch plate steel. The newly designed lower bracket simply installs with a U-bolt instead of the old style fabricated straps that required welding.

IMPORTANT FITMENT NOTES:

  • This kit will NOT work on 2011+ Dodge Rams with Traction Control equipped. To verify if the vehicle has traction control, the dash will feature a logo of a vehicle with "skid marks" behind it. You can also verify by two soft rubber brake lines coming down the frame and meeting at the axle brake line bracket.
  • This kit is only intended for use with vehicles featuring a 1-2" rear lift unless you opt for the optional Airbag Spacer, which is intended for use with trucks that have a 4" rear lift (6" front).
DETAILS:
  • Supports up to 12 inches of travel
  • Maximum Load Capacity
  • .250 Plate Construction
  • Perfect for 5th Wheel and Bumper Pull Trailers
  • Laser Cut and Powder Coated Brackets
