Carli Suspension
Carli Spec 2.0" Backcountry 3.25" Lift Shock Package (2014-2024 Ram 2500 w/6.7 Cummins)
Carli Spec 2.0" Backcountry 3.25" Lift Shock Package (2014-2024 Ram 2500 w/6.7 Cummins)
Regular price
$1,545.00 USD
Regular price
Sale price
$1,545.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Carli-SPEC 2.0 Remote Reservoir shocks are not your average off the shelf shock, Carli takes it a step further. Carli has developed a tune that delivers all-around comfort and ride quality designed for on road, in town, highway, and towing/hauling. The body is 6063 aluminum offering a long service life and fantastic heat dissipation – they’re also anodized for corrosion resistance. The 5/8″ shafts are a hardened & chrome plated steel. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation.

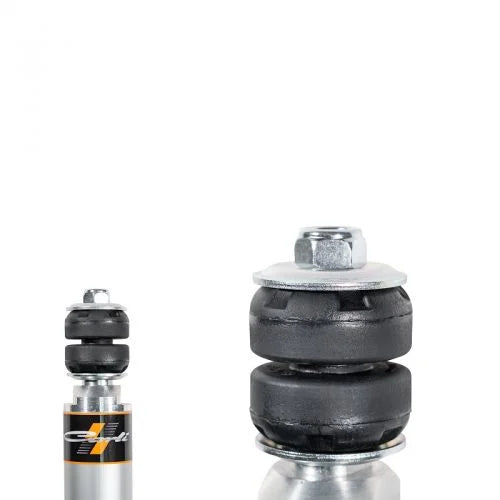

The rod ends are constructed of 6061 billet aluminum; inside you will find a high-quality 1-peice bushing and zinc-plated crush sleeves for precision fit and longevity. The cylinder end cap has a unique design as it overlaps the body of the shock to provide external support to the internal snap ring. These shocks serve as the travel limiter for all trucks without our radius arms (and subsequent limit straps installed), ensuring the shock stays together on top out while bearing the load of the axle is paramount. The Remote Reservoir variant adds the separate canister to carry the dividing piston and nitrogen charge leaving the entirety of the body available for extended piston travel. Without getting too technical, a Remote Reservoir will have more suspension travel than an IFP with the same mounting dimensions. In adding this canister, we have spec’d a high quality hose and fittings (better than our Fox offerings) similar to the one offered on our King shocks.The last high-end touch Carli added is a billet, laser etched Carli reservoir clamp(rear shocks only). This Carli shock package is designed to be matched with a set of Carli's leveling front coils and factory rear leaf springs.
FEATURES & BENEFITS:
- Carli SPEC 2.0" Remote Reservoir Shocks, Front and Rear
- 10" Front and Rear Travel
- Includes Coil-Mounted Reservoir Mounts
- Requires 3.25" Carli Front Springs and R1 or R2 Rear Coils
- NOT Compatible with Factory Air Ride
- Fitment: 2014+ Ram 2500 4x4, Diesel
