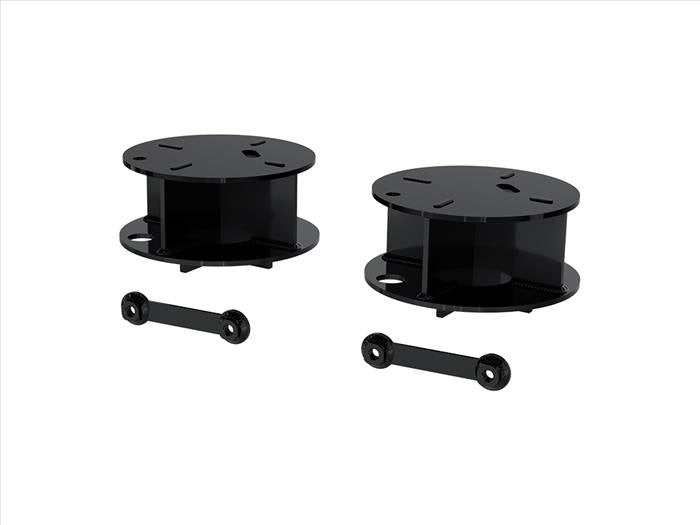

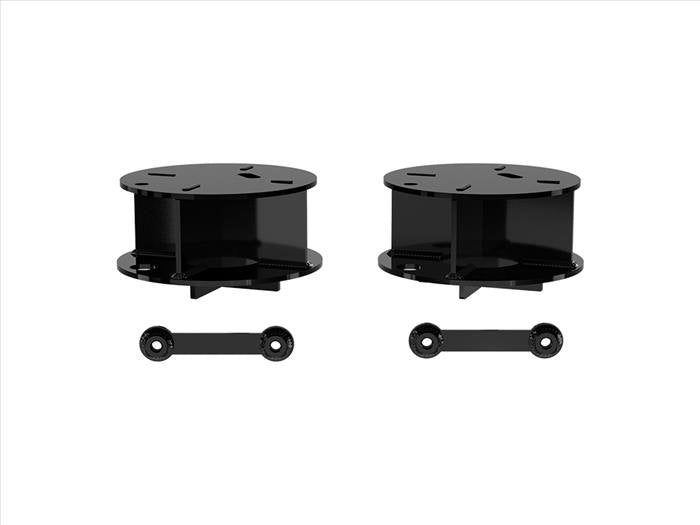

ICON Rear Coil Spacer Kit (22-24 Tundra)

The ICON 3” Lift Rear Coil Spacer Kit is used as part of the ICON 6” Lift Performance Suspension System for the 2022-2023 Toyota Tundra and allows the OE rear coil springs to be reused to obtain the required rear lift at a lower cost while still allowing the option to upgrade to ICON Triple Rate Rear Coil Springs in the future. These high-quality spacers are fabricated from CNC laser cut steel and powder coated with a semi-gloss black finish.

FEATURES

• Allows use of OE rear coil springs with ICON 6” Lift Performance Suspension System
• Lower cost option compared to ICON Triple Rate Rear Coils
• Compatible with 2WD and 4WD models
• Fabricated steel construction
• Durable semi-gloss black powder coat finish
• ICON Limited Lifetime Warranty

TECH INFO

• OEM Wheels & Tires Fitment: No
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension
• APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
• TECH NOTE: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.
