ICON Stage 10 Suspension System 1.25-3.5" (2022+ Tundra/2023+ Sequoia)

The 3rd Gen Tundra Icon Vehicle Dynamics Stage 10 Kit Features CDCV Coilvoers and rear Shocks, upgraded UCA's, along with Upper and Lower Trailing Arms.

Stage 10 includes ICON's exclusive CDCV Compression Damping Control valves for fast, easy adjustability as well as a full complement of ICON suspension components from front Upper Control Arms to rear Upper and Lower Trailing Arms, in either billet or tubular versions.

Get up to 40% more travel versus stock! ICON's Billet or Tubular Upper Control Arms to squeeze every inch of travel out of the Tundra's suspension while increasing available lift height to 1.25 to 3.5" (front). ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers. Get increased rear shock performance to match the 2.5 front coilovers.

• Adjustable 1.25-3.5" of Front Lift
• 2.5 VS CDCV Coilovers
• 7/8” diameter induction hardened, chrome plated shock shaft.
• 2.5” diameter monotube design.
• Fitment for up to  35" tires (larger tires may fit with minor fender trimming and modifications)
• TIRE & WHEEL: 35X12.50 ON 8.5" WIDE WHEEL W/ 5.75" BACKSPACE (MINOR TRIMMING REQUIRED)
• Improved suspension performance and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• PTFE lined bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Tubular or billet UCA for added strength, durability and an additional degree of caster (Select Stages)
• UCAs feature the Delta Joint Pro with 90 degrees of total articulation (Select Stages)
• Vehicle specific design.
• Vehicle specific tuned for superior shock damping and control
• CNC machined 6061 aluminum components
• 100% Rebuildable and revalveable
• Fits: 2022+ Toyota Tundra

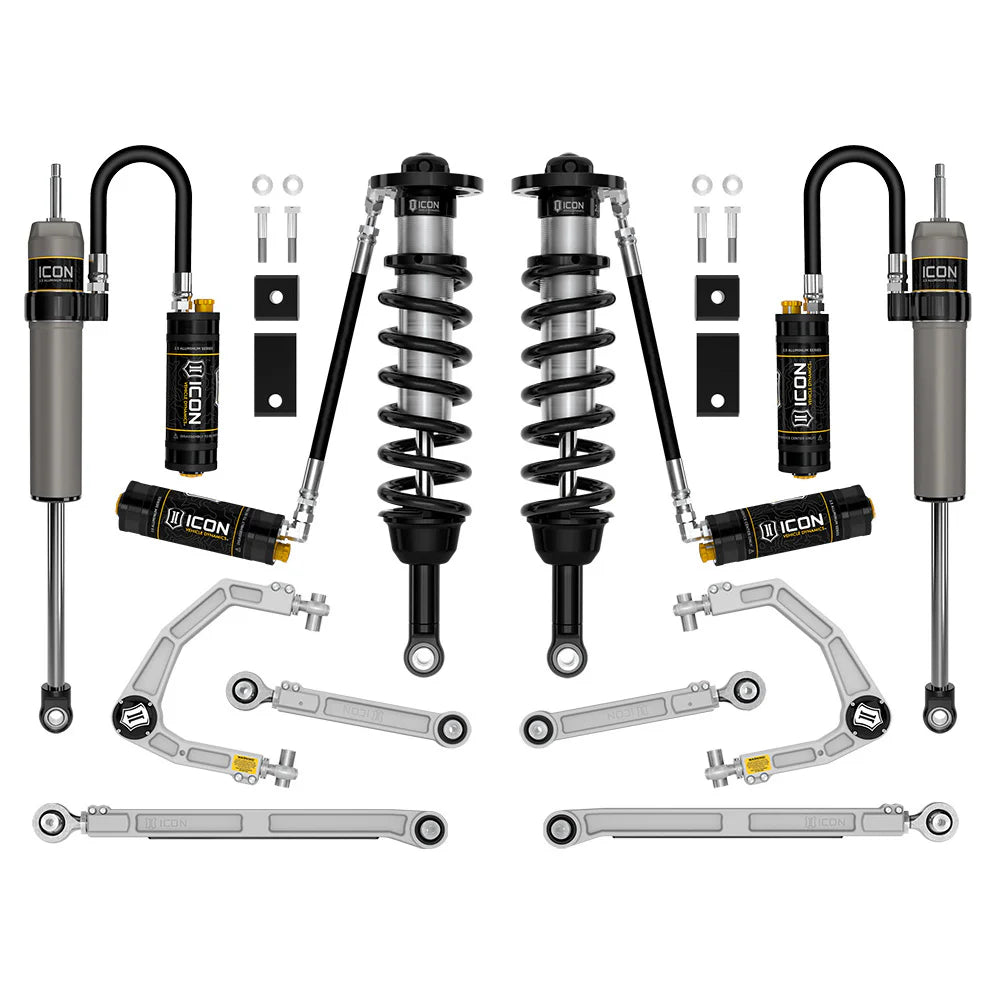

STAGE 10 Includes:

• (1)    22-UP TUNDRA 2.5 VS CDCV COILOVER KIT 1.25"-3.5"
• (1)    22-UP TUNDRA TUBULAR or BILLET UCA KIT with DELTA JOINT PRO
• (1)    22-UP TUNDRA SWAY BAR DROP KIT
• (1)    22-UP TUNDRA LOWER TRAILING ARM TUBULAR or BILLET
• (1)    22-UP TUNDRA UPPER TRAILING ARM TUBULAR or BILLET
• (1)    22-UP TUNDRA 2.5 CDCV - REAR SHOCKS

K53200T 22-UP TUNDRA STAGE 10 TUBULAR UCA
■ TIRE/WHEEL REC: 35X12.50 ON 17x8.5” WIDE WHEEL W/ 5.75” BACK SPACE
■ APP NOTE 55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A
STOCK EQUIPPED VEHICLE.
■ APP NOTE 85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE.
INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
■ APP NOTE 142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING
REAR HEIGHT CONTROL AIR SUSPENSION.
■ APP NOTE 143: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH ADAPTIVE VARIABLE
SUSPENSION (AVS).
■ APP NOTE 144: NOT COMPATIBLE WITH 22-UP TUNDRA TRD PRO.
■ APP NOTE 146: 22-UP TUNDRA SR5 EQUIPPED WITH TRD SPORT PACKAGE LIFT RANGE
WILL BE 1.5-4”
K53200 22-UP TUNDRA STAGE 10 BILLET UCA
■ TIRE/WHEEL REC: 35X12.50 ON 17x8.5” WIDE WHEEL W/ 5.75” BACK SPACE
■ APP NOTE 55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A
STOCK EQUIPPED VEHICLE.
■ APP NOTE 85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE.
INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
■ APP NOTE 142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING
REAR HEIGHT CONTROL AIR SUSPENSION.
■ APP NOTE 143: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH ADAPTIVE VARIABLE
SUSPENSION (AVS).
■ APP NOTE 144: NOT COMPATIBLE WITH 22-UP TUNDRA TRD PRO.
■ APP NOTE 146: 22-UP TUNDRA SR5 EQUIPPED WITH TRD SPORT PACKAGE LIFT RANGE
WILL BE 1.5-4”
