ICON Stage 2 Suspension System 0-3" (2022+ Tundra/2023+ Sequoia)
ICON Stage 2 Suspension System 0-3" (2022+ Tundra/2023+ Sequoia)
Couldn't load pickup availability
The ICON Vehicle Dynamics Stage 2 builds on ICON's 2.5 EXP Shock Kit with the addition of billet or tubular front upper control arms. ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout suspension travel.
- Up to 3" of Front Lift
- Fitment for up to 35" tires (larger tires may fit with minor fender trimming and modifications)
- TIRE & WHEEL: 35X12.50 ON 8.5" WIDE WHEEL W/ 5.75" BACKSPACE (MINOR TRIMMING REQUIRED)
- Improved suspension performance and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- PTFE lined bearings for extended longevity and minimal deflection
- 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Tubular or billet UCA for added strength, durability and an additional degree of caster (Select Stages)
- UCAs feature the Delta Joint Pro with 90 degrees of total articulation (Select Stages)
- Vehicle specific design.
- Vehicle specific tuned for superior shock damping and control
- CNC machined 6061 aluminum components
- 100% Rebuildable and revalveable
- Fits: 2022+ Toyota Tundra
- (2) 22-UP TUNDRA EXP FRONT SHOCKS 0-3"
- (1) 22-UP TUNDRA TUBULAR or BILLET UCA KIT with DELTA JOINT PRO
- (1) 22-UP TUNDRA SWAY BAR DROP KIT
- (2) 22-UP TUNDRA 0-1" REAR 2.0
Technical Notes

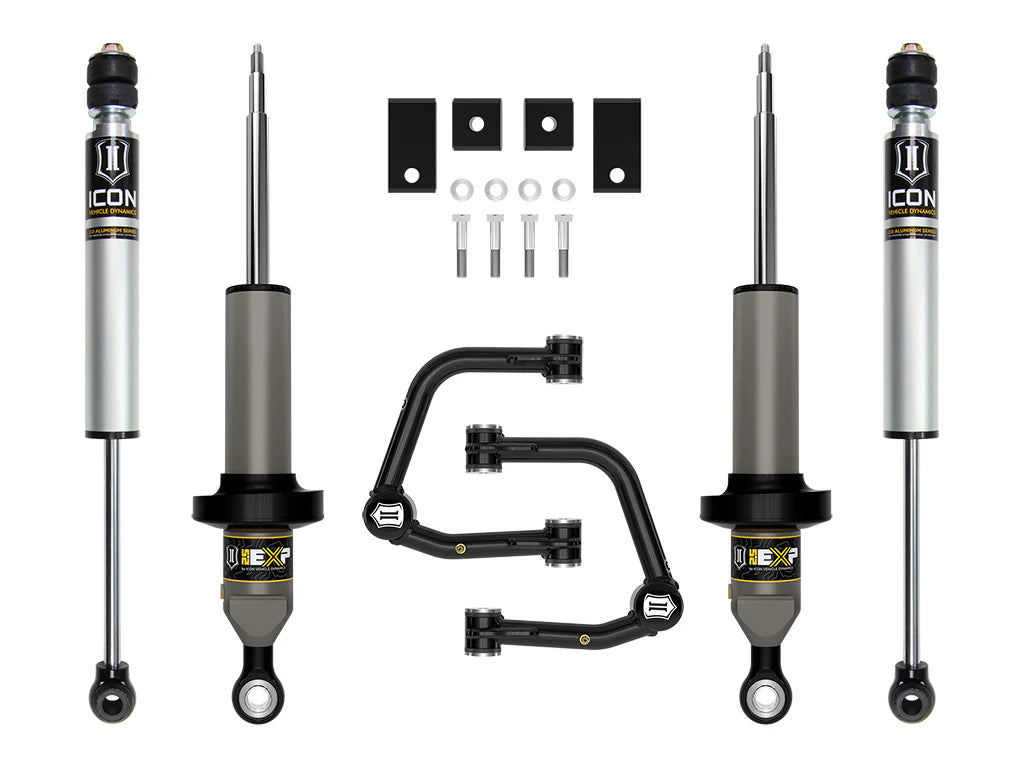

K53192T 22-UP TUNDRA STAGE 2 TUBULAR UCA
■ TIRE/WHEEL REC: 35X12.50 ON 17x8.5” WIDE WHEEL W/ 5.75” BACK SPACE
■ APP NOTE 55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A
STOCK EQUIPPED VEHICLE.
■ APP NOTE 85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE.
INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
■ APP NOTE 143: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH ADAPTIVE VARIABLE
SUSPENSION (AVS).
■ APP NOTE 144: NOT COMPATIBLE WITH 22-UP TUNDRA TRD PRO.
■ APP NOTE 145: WILL NOT WORK WITH HYBRID EQUIPPED VEHICLES.

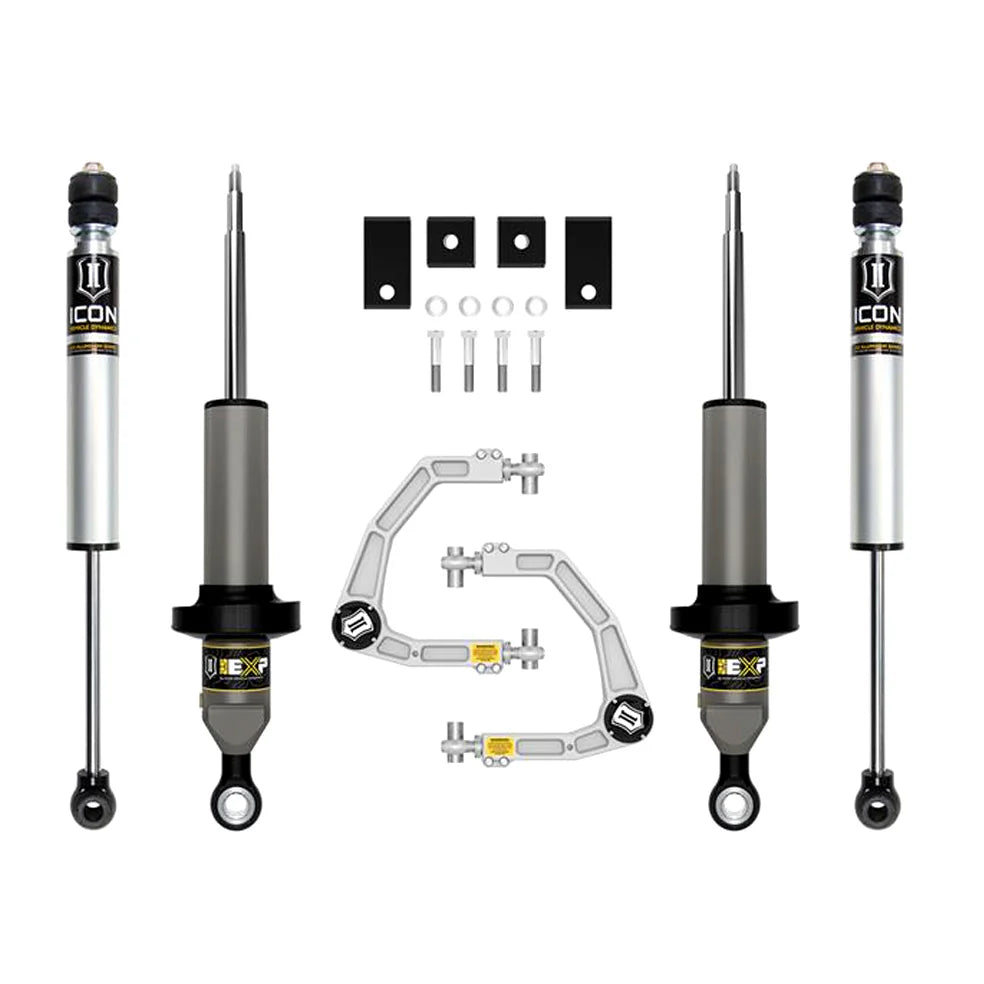

K53192 22-UP TUNDRA STAGE 2 BILLET UCA
■ TIRE/WHEEL REC: 35X12.50 ON 17x8.5” WIDE WHEEL W/ 5.75” BACK SPACE
■ APP NOTE 55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A
STOCK EQUIPPED VEHICLE.
■ APP NOTE 85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE.
INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
■ APP NOTE 142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING
REAR HEIGHT CONTROL AIR SUSPENSION.
■ APP NOTE 143: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH ADAPTIVE VARIABLE
SUSPENSION (AVS).
■ APP NOTE 144: NOT COMPATIBLE WITH 22-UP TUNDRA TRD PRO.
■ APP NOTE 145: WILL NOT WORK WITH HYBRID EQUIPPED VEHICLES.
