IRONMAN 4x4

IRONMAN 4x4 Frontier 9,500lb Winch w/Synthetic Rope

IRONMAN 4x4 Frontier 9,500lb Winch w/Synthetic Rope

Regular price $649.00 USD
Regular price Sale price $649.00 USD
Sale Sold out
Shipping calculated at checkout.

BACK IN STOCK 13 DEC 2024

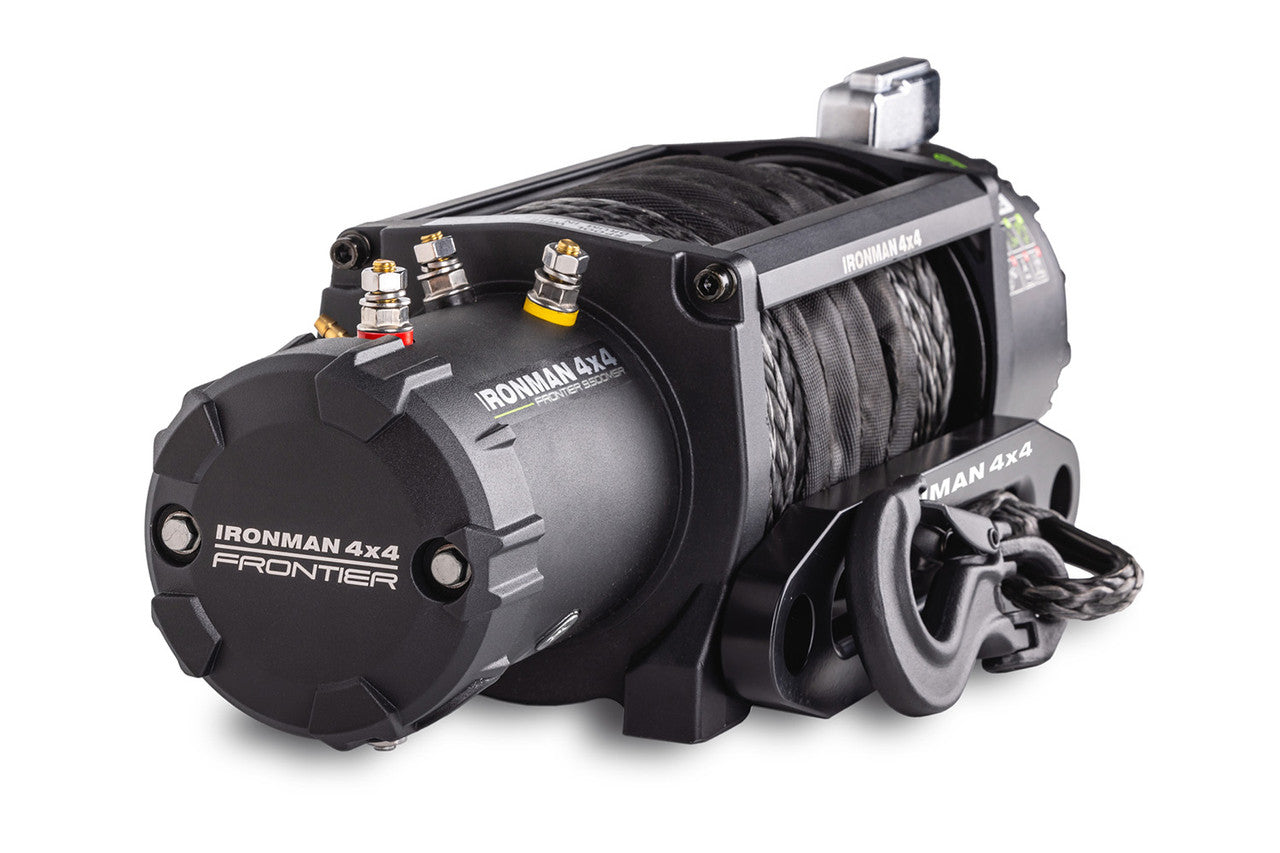

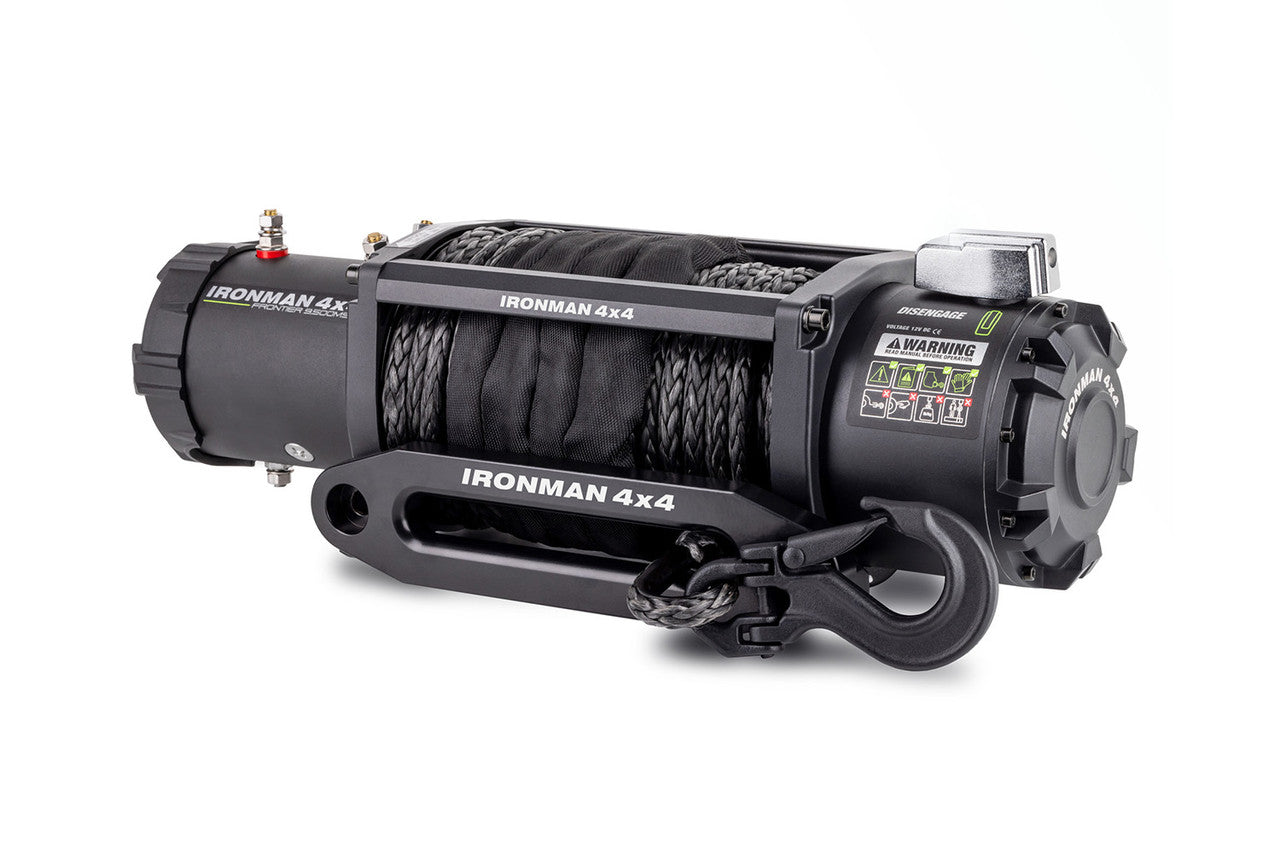

Frontier 9,500 lb Winch with Synthetic Rope

SUPERIOR DURABILITY: Built with over a decade of development, the Frontier Winch Range offers unmatched reliability with low-maintenance, synthetic rope designed to withstand the toughest conditions.

WATER RESISTANT DESIGN: With an IP68 rating, the winch can be submerged up to 5 feet for 30 minutes, allowing you to tackle wet and muddy terrain without compromising performance.

ADVANCED BREATHER TECHNOLOGY: The built-in breather protects seals by expelling moisture, enhancing the winch's durability and longevity, even in extreme environments.

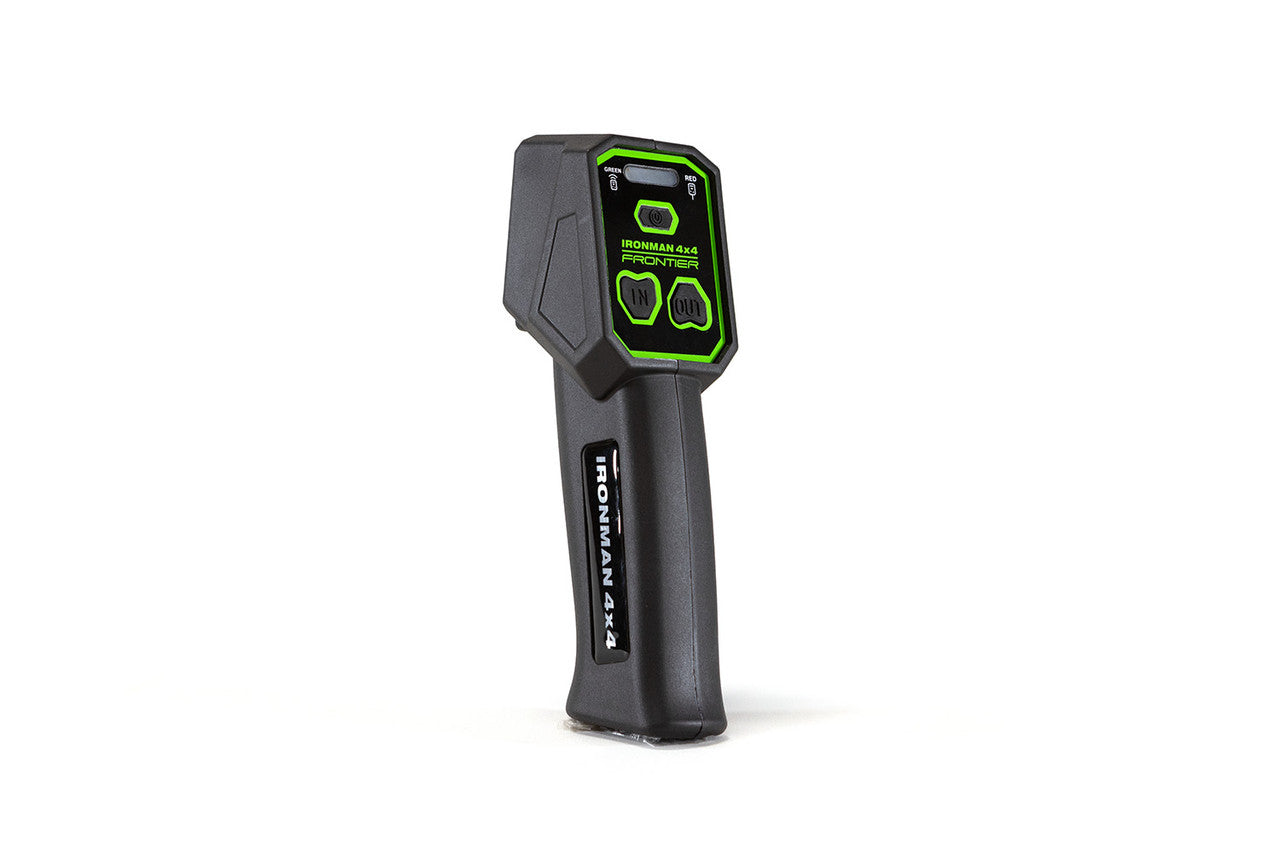

DUAL REMOTE FUNCTIONALITY: Equipped with both wireless and plug-in remote controls, the Frontier Winch offers flexible control options, ensuring safety and convenience during recovery operations.

POWERFUL PERFORMANCE: Powered by robust 4.5 HP(9,500 lb) or 6 HP (12,000 lb) motors, with up to 28 to 34 feet per minute line speed, this makes for a powerful and efficient tool for all your recovery needs.

LONG-TERM WARRANTY: Backed by a 5-year mechanical warranty, the Frontier Winch delivers peace of mind with its proven mechanical design and reliability in the harshest environments.



SPECS

RATING & PERFORMANCE
Rating 9,500 lb
Motor 4.5 HP
Power

Voltage: 12 V

Current Draw @ 12 V: 74

Max Current Draw @ 12 V: 350

Line Speed

No Load: 34.56 ft/min

Full Load: 7.38 ft/min

Water Ingress IP68
Breather Included
Gearing

Ratio: 218:1

Type: 3 Stage Planetary

Brake Auto cam lock-in brake
Clutch

Clockwise-disengage

Counterclockwise-engage

RECOVERY LINE
Line

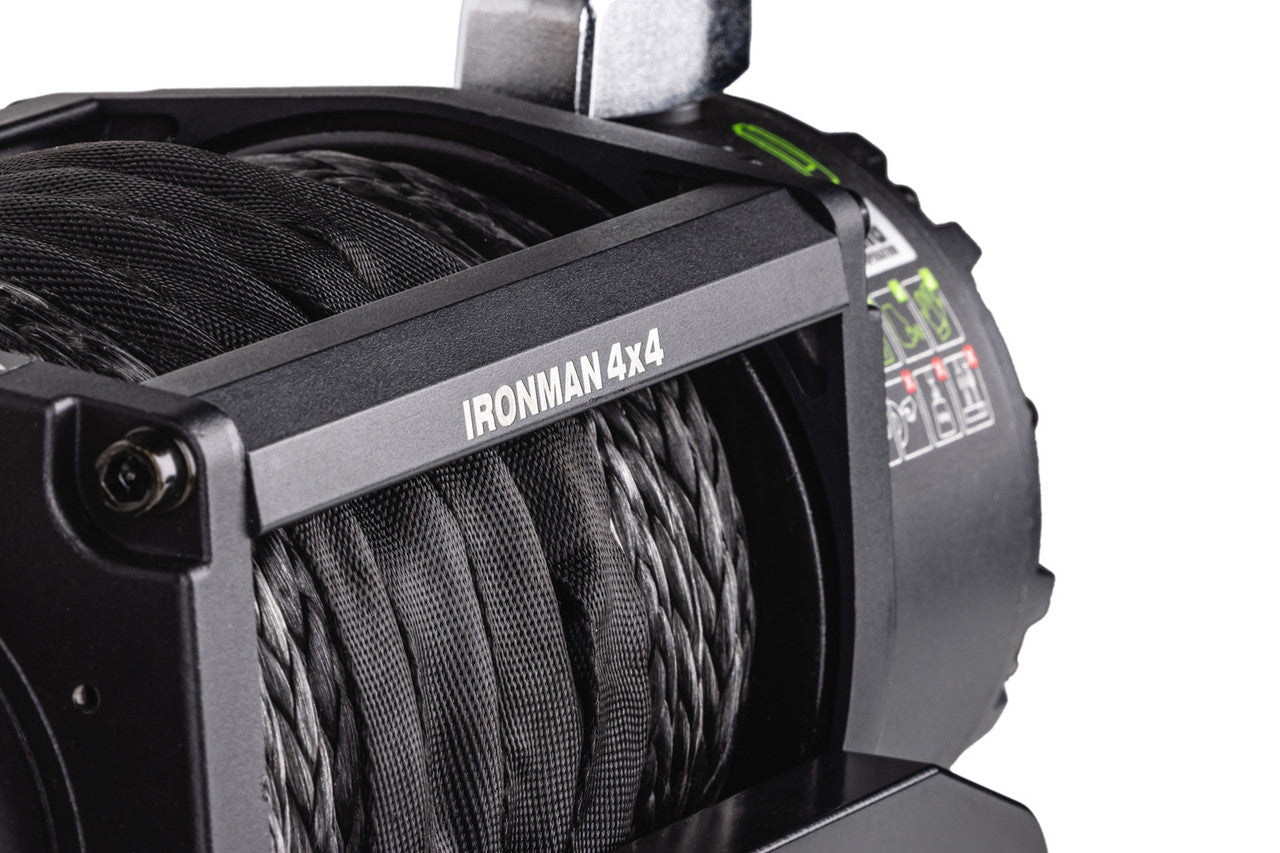

Type: Synthetic Rope

Diameter: 3/8"

Length: 82 ft

Breaking Load: 19,000 lb

Rope Connection: Spliced Lug

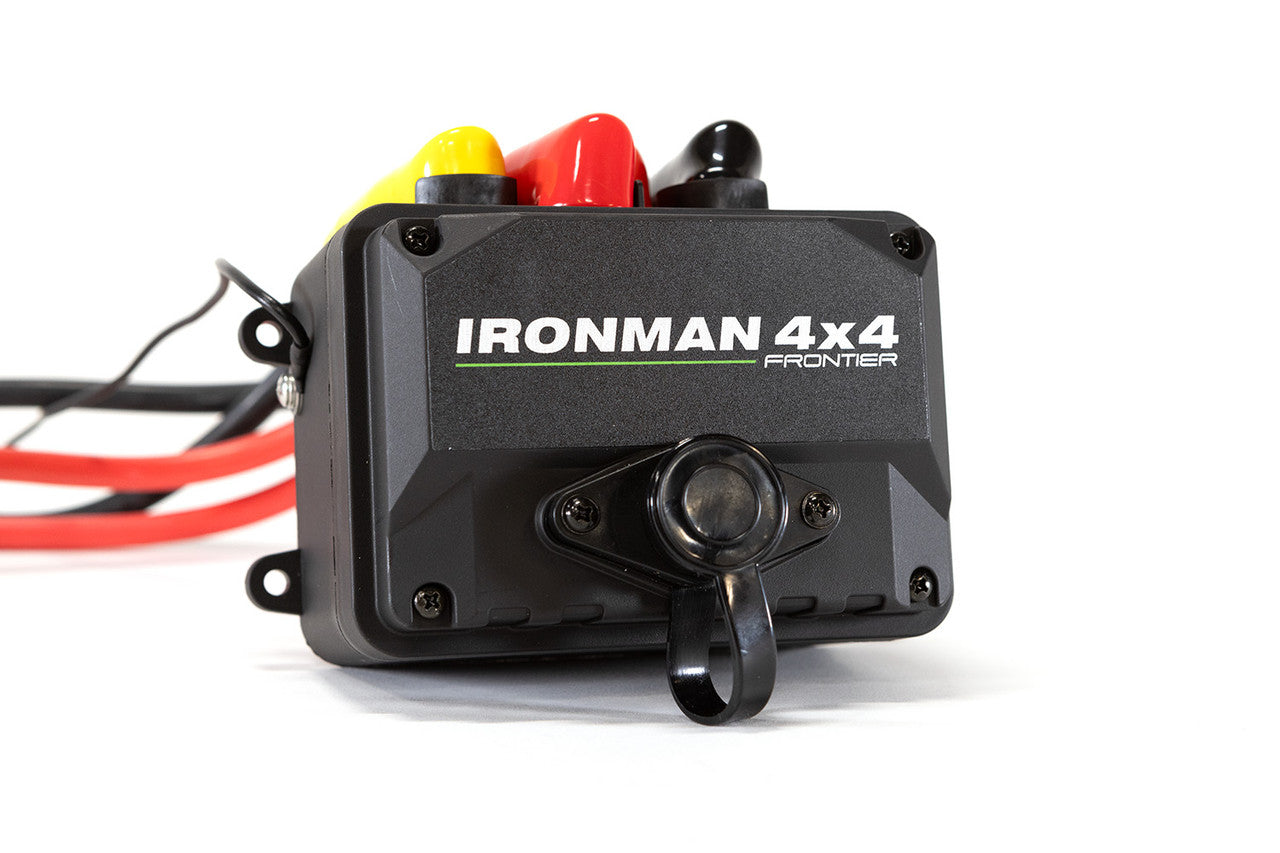

Controller

Wireless Remote & Wired

Battery: CR2450

Hook Steel Hinged

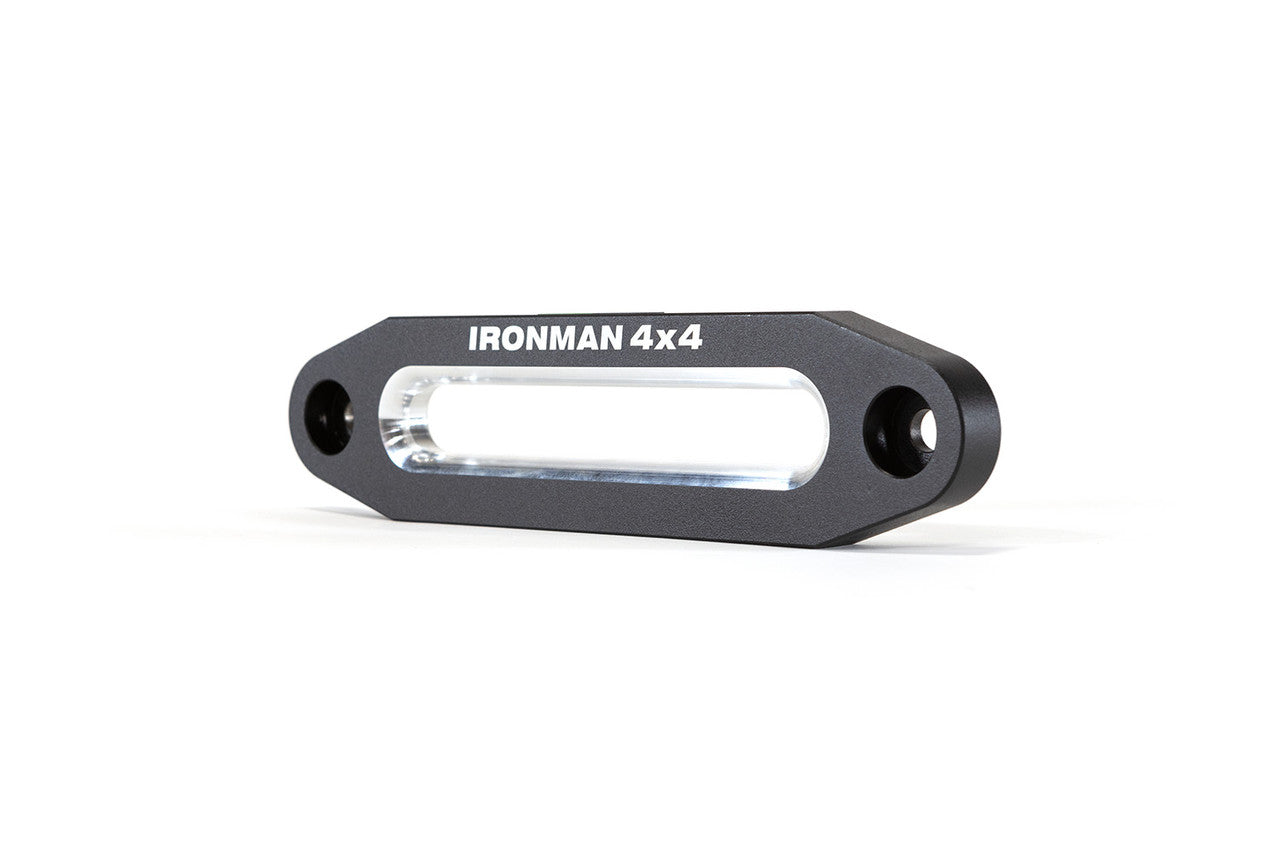

Fairlead  Hawse
Hand Strap Yes
WEIGHT & DIMENSIONS
Dimensions

With Control Box: 21.1 x 6.3 x 10.5"

Without Control Box: 21.1 x 6.3 x 7.2"

Weight 60.5 lbs
Power Cable

Size: 0 AWG

Material: Copper

Control Box Length: 24" x 3 pc

Positive (Red) Length: 81.1" x 1 pc

Negative (Black) Length: 82.7" 1 pc

CERTIFICATION
Certification CE
View full details
