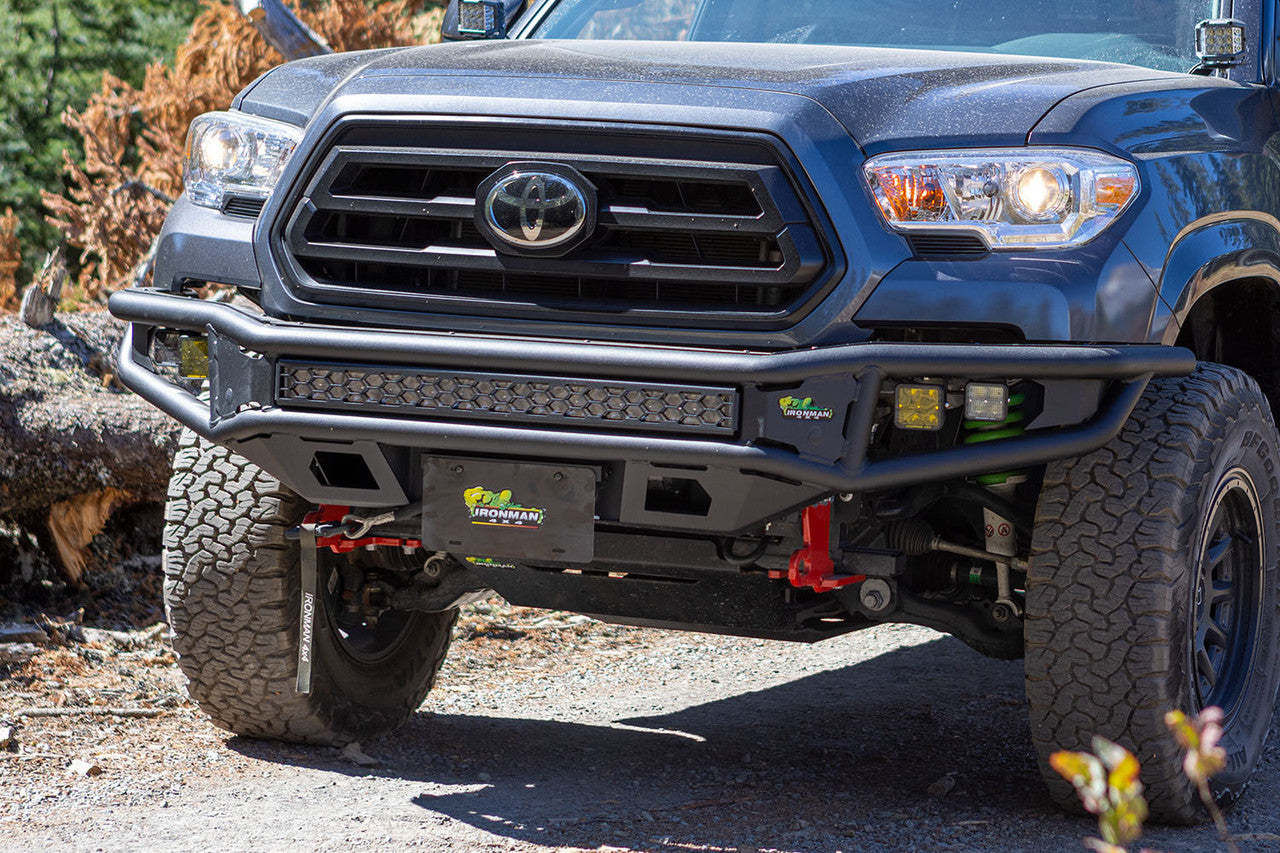

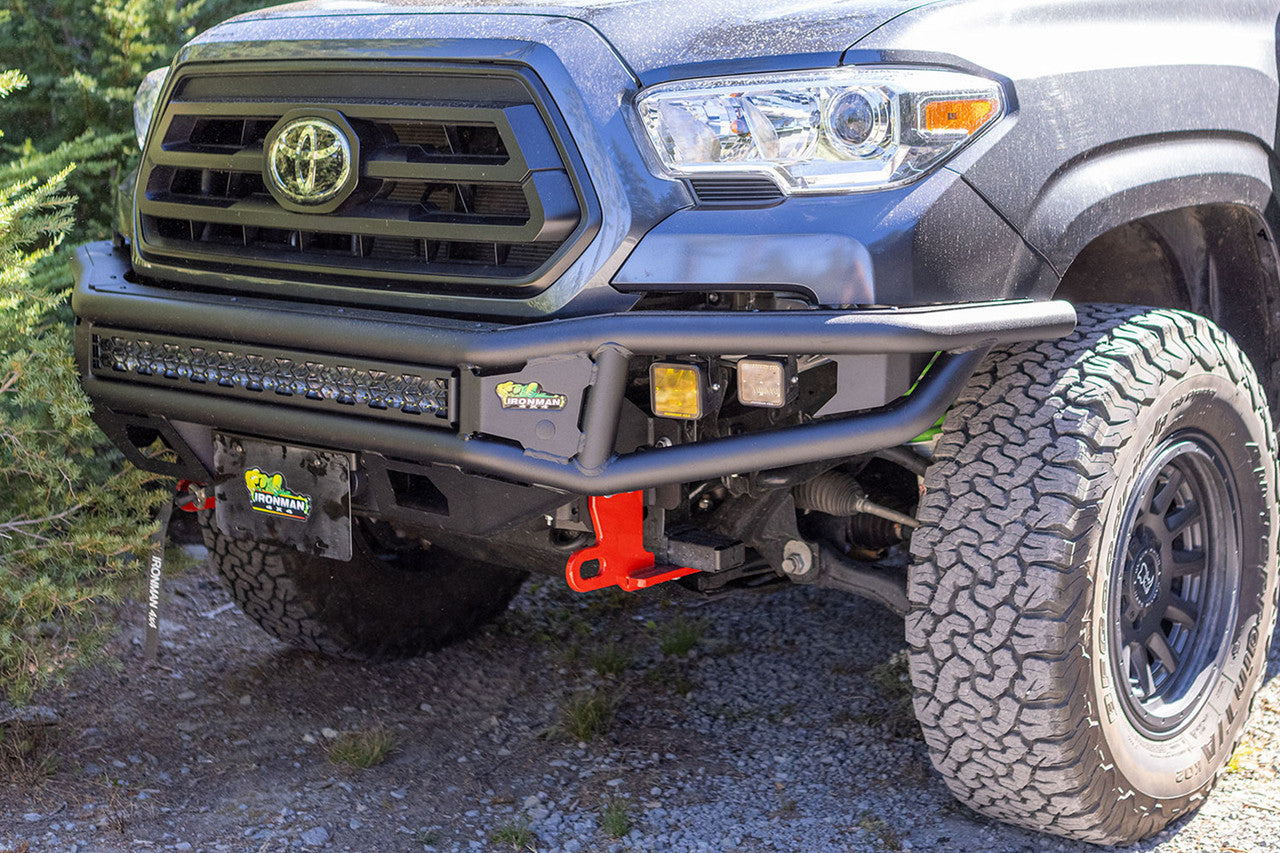

IRONMAN 4x4 Raid Front Bumper Kit (2016-2023 Toyota Tacoma)

The world's first fully crash safety tested and SRS airbag compatible tubular style bumper to suit 3rd gen 2016-2023 Toyota Tacoma.

Leveraging our experience of designing and manufacturing vehicle armor for military, fleet, and recreational purposes, the mission was to create the safest, most feature-loaded 4x4 steel Tacoma bumper on the market.

Raid Front Bumper Kit 2016-2023 Toyota Tacoma

The RAID 4x4 bumpers blend the Australian mindset of functionality with American design characteristics. As a result, the protective Tacoma bumper provides you and your passengers maximum safety for daily driving with the essential trail-ready features of improved vehicle protection, increased approach angle, additional ground clearance, and winch carrying capability. 

The Ironman 4x4 Raid front bumper uses our two-stage attachment design, connecting the winch cradle directly to the chassis for the most robust possible recovery platform. Alternative one-piece bumpers pull from the bumper shell, causing twisting and potential deformation to the steel bumper and vehicle. In addition, the frame-mounted rated recovery points (5,000kg/11,000lbs) give you a concrete foundation for recovery or towing. 

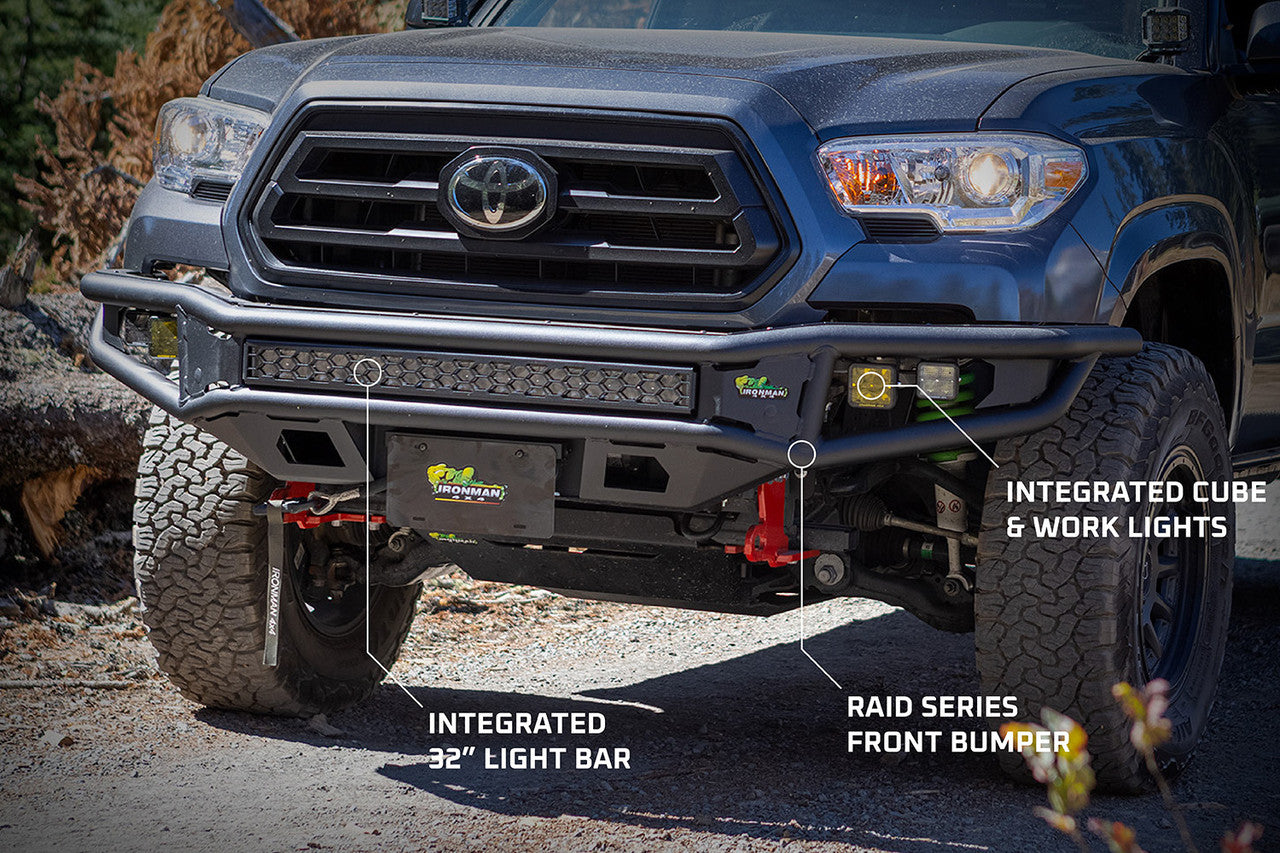

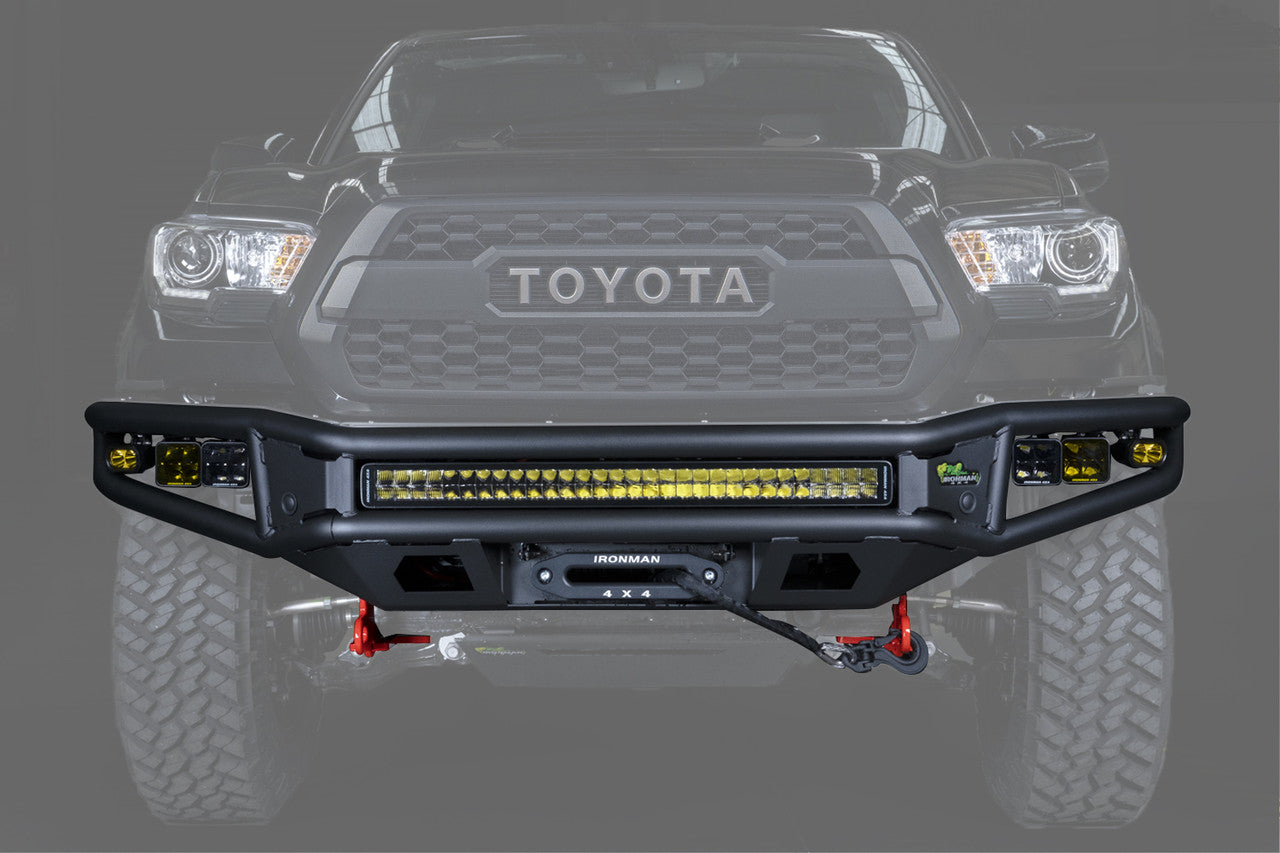

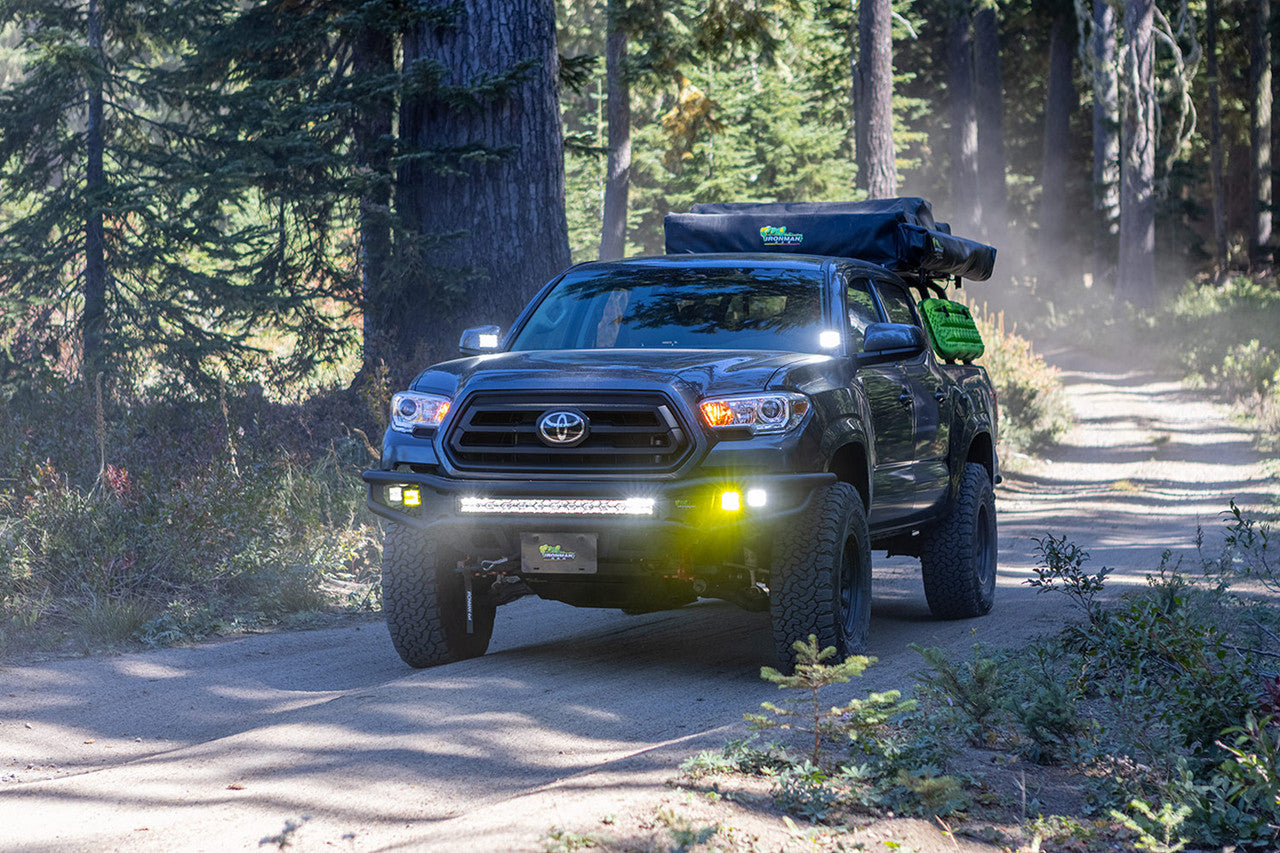

The Raid off-road steel bumper can come fully loaded with a 32", 300W dual row OSRAM chip LED light-bar delivering projection of 25000 Raw lumens into the road ahead for confidence-boosting visibility in nighttime driving. The new hooded reflectors direct the light beam more effectively and reduce glare commonly found in light bars.

In addition to the powerful light-bar are four customizable OSRAM chip LED cube lights with up to 4800 lumens; choose between clear or amber, spot or flood. All lights feature a flat, UV-stable polycarbonate lens designed to reduce rain/snow/ice build-up.

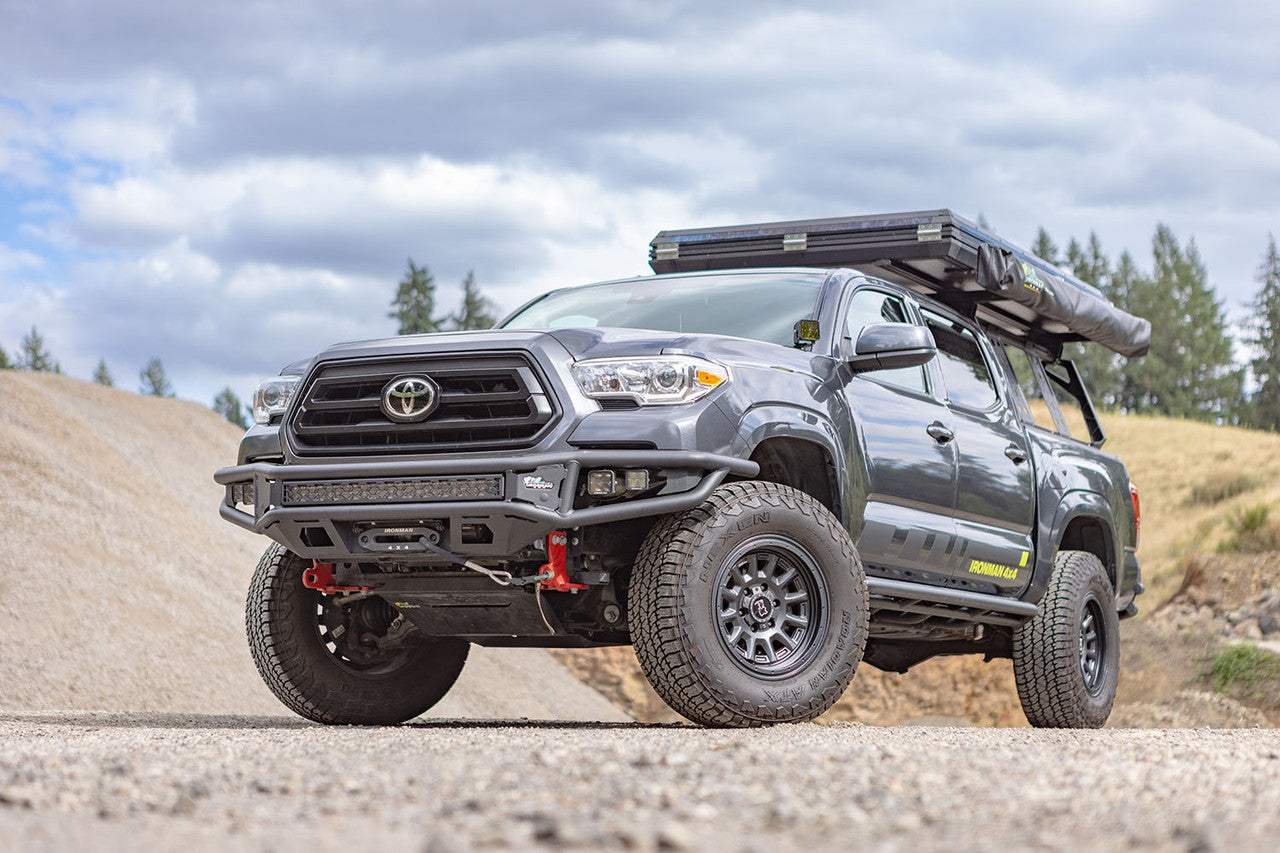

For 360 degree protection and further enhancement of on/off-road features for your Toyota Tacoma, pair with the RAID rear steel bumper, and RAID frame mounted heavy duty side steps, and our heavy duty skid plate kit.

Bumper requires minimal amount of trimming to front fender plastics.

Additional Features:

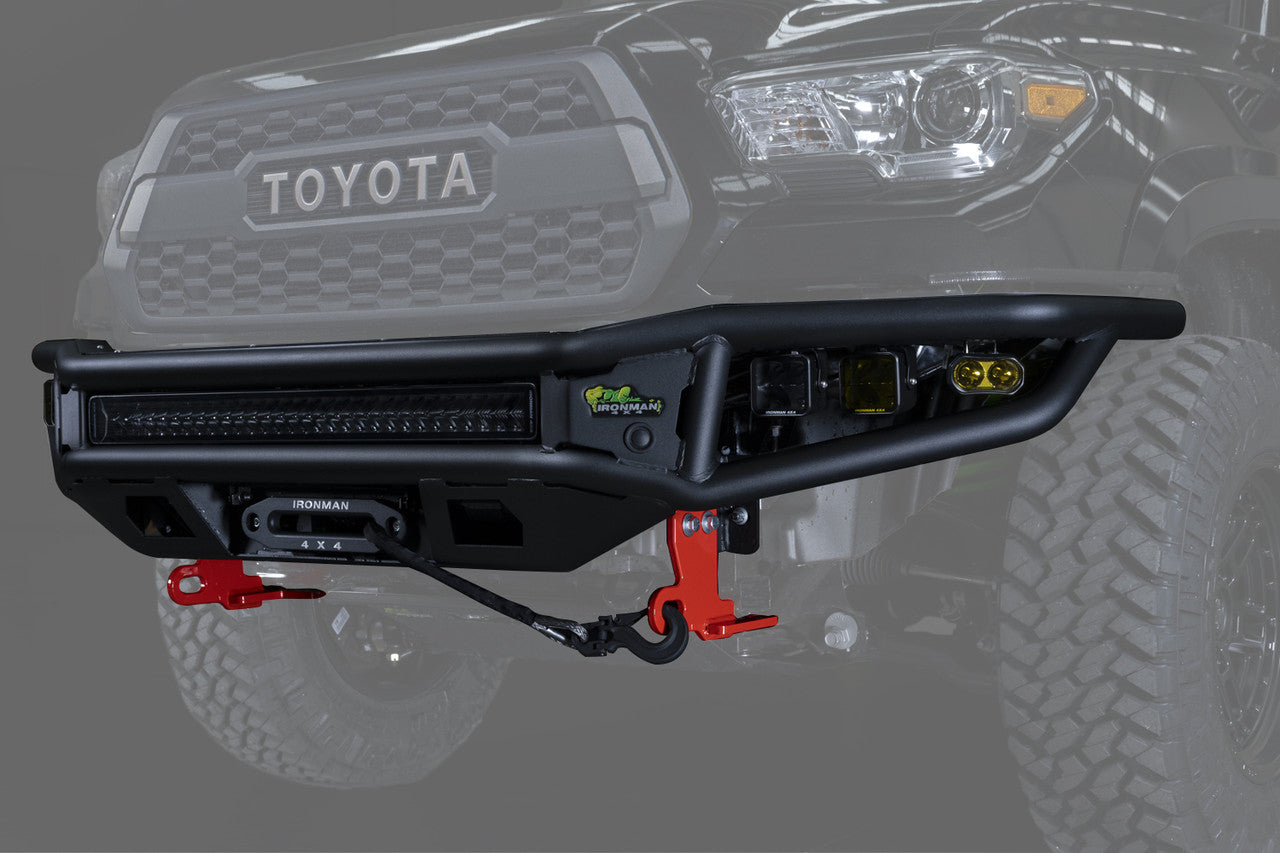

• Two-part front bumper design with a winch cradle mounted directly to the chassis for the strongest and safest possible winching platform for the harshest recovery situations

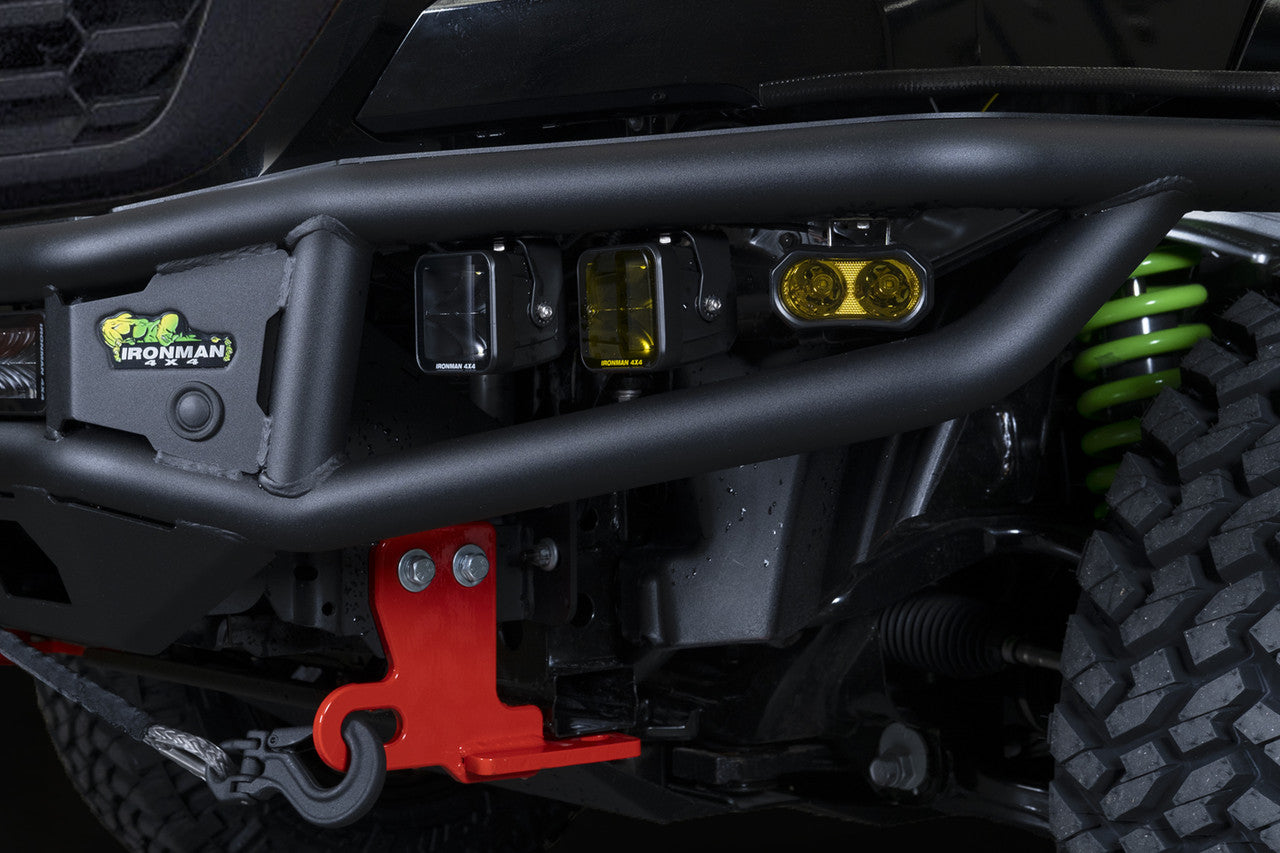

• Bolt-on, frame-mounted recovery points (5,000kg/11,000lbs) included with the bumper
• Integrated crumple zones transfer energy away from vehicle occupants
• ADR 69, 73 approved (Full Frontal and Offset Impact Occupant Protection)
• Tested to the highest standards in compliance with Australian Design Regulation, SRS Airbag tested and certified
• Winch compatible with clutch handle access and line visibility
• Standard 10” x 4.5” winch mount footprint
• Pickled, cold-rolled steel manufacturing for impurity free template during assembly
• Ultra-durable AKZO NOBEL Black Powder Coat and pre-treated steel for rust resistance
• 360° Robotic welding for consistently precise welds resulting in peak quality and unequaled strength
• Increased approach and departure angles provide maximum clearance for obstacles
• Compatible with factory parking sensors
