MADS Smarty Touch Programmer (1998.5-2018 Ram 5.9/6.7 Cummins)

ITS FINALLY HERE! For years, we've all been asking for a Smarty programmer with an integrated gauge display, so we didn't have to combine two separate products to have the enormous benefits of a Smarty and a set of gauges. And after nearly two years in development, it is finally here. In true Smarty fashion, any and all of the slightest details have been addressed, down to the backlighting and future expansions

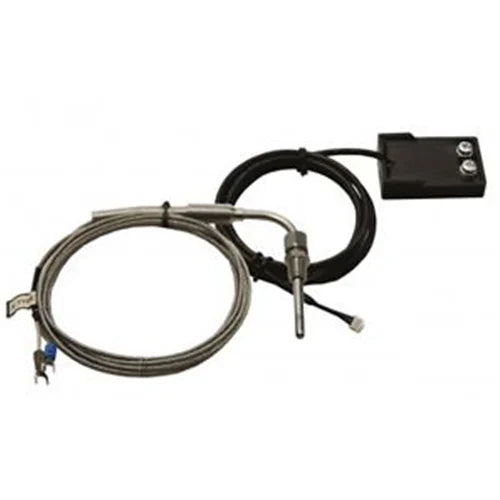

We recommend adding the Smarty Touch specific EGT probe to allow you to read exhaust gas temperature readings.

IMPORTANT: For 2013+ models, you will be required to add the optional ComMod module from below. In order to enable On the Fly tuning for 2010-2016 Rams, you will also require the ComMod. Further information regarding the ComMod are available from the section below.

Smarty Touch gives you all of the same benefits that you have come to expect from Smarty. From the notorious CaTCHER software for unrivaled and reliable performance gains to the near endless settings that can be adjusted to the super fast downloads...nothing has changed here. But now with the superior advantage of giving you a FULL set of gauges, alerts, and a host of other features to give you one comprehensive vehicle display center and power adder all in one unit.

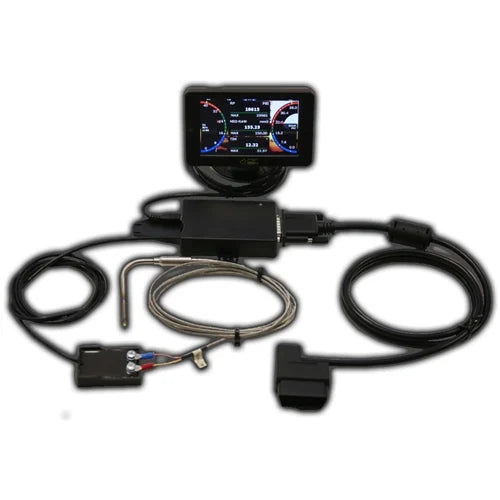

Smarty Touch features:

• 4.3" Touch Display. Resolution 480 x 272 - 16.3 million colors.
• Two devices: Smarty Touch Display and Smarty Touch Controller each with its own CPU. The Display for the graphics user interface and the controller for communicating with the ECM.
• "Real Time" On The Fly tuning available for 2010-2018 Rams with the addition of the ComMod!!!!
• Each gauge stores/updates and displays the max reached PID value continuously.
• Fastest ECM download in the industry, up to three times faster than the competition, a typical ECM update takes 1.5 to 6 minutes, depending on the model year.
• Fastest display start up in the industry. Just four seconds!
• Fastest PID refresh speed in the industry.
• Small micro USB cable connecting the display and the controller for easy installation.
• MicroSD card for simple and fast updates (included).
• Fully Internet updateable. Updates are always FREE!
• MicroSD card can store multiple UDC custom tunes.
• Works with any MicroSD FAT file system formatted card.
• EGT sensor (optional). Reads accurately up to over 2200°F.
• Two alarms (high and a low range) can be configured for each PID.
• Audible and/or visible alarms can be configured.
• Configured ranges are also displayed through colored bars in all digital gauges.
• Configurable PID refresh speed.
• Recorded max values can be reset at any time.
• Data logging capability with a real time clock that can be exported to various spreadsheet formats.
• Customizable display background.
• Adjustable sound feedback for alarms.
• Supports over 300 SAE and Proprietary PID's.
• Twin CPU design. The fastest Display Tuner on earth!
• Freely configurable gauge(s) range.

Transmission Tuning:

• Currently available for 2010-2018 model years
• Raised line pressure in all forward gears AND during shifts
• Increased shift firmness for less clutch slippage
• Changed shift points at WOT (Wide Open Throttle) in all gears at 3000 RPM
• 6th Gear unlock and downshift to avoid the massive torque and make the transmission last longer

Smarty Features:

• CaTCHER software inside with ten power levels.
• Selectable performance parameters for fine tuning.
• Works with our UDC custom tuning software
• Can store any number of UDC custom files. The only limit is the storage space on the MicroSD card.
• ABS tire height updates in just seconds.
• Not traceable in the stock setting. Smarty Touch leaves no footprint in all 5.9L trucks.
• Manual High Idle is enabled in all softwares for CR 5.9L trucks.
• TPMS Adjustment (2010-2018 Models)
• Reads Diagnostic Trouble Codes in plain text.
• Clears DTC's.
• Reliable, it works off your OEM hardware.
• Programmable Speed Limiter from 25 to 250 mph.
• TNT-R and SSR software for CR 5.9L trucks (Requires unlock code).
• RPM and Shift limiters unlocked with TNT-R and SSR softwares.
• Power on Demand "PoD" for CR 5.9L and 2007 - 2009 6.7L trucks.

IMPORTANT NOTE:

• This product is intended to be used with a factory exhaust, or a DPF back exhaust system, as DPF delete functionality is not a function of this tuner.
