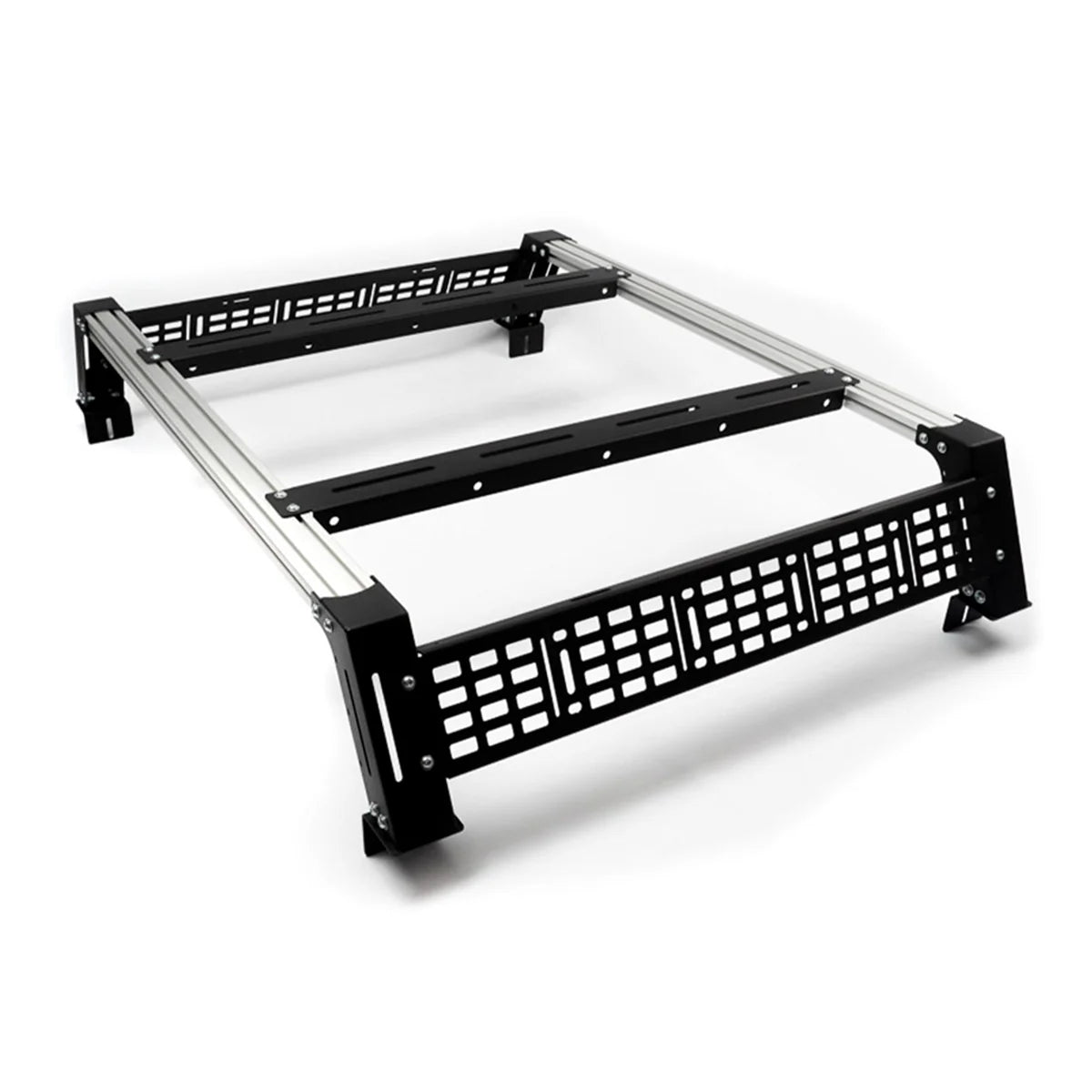

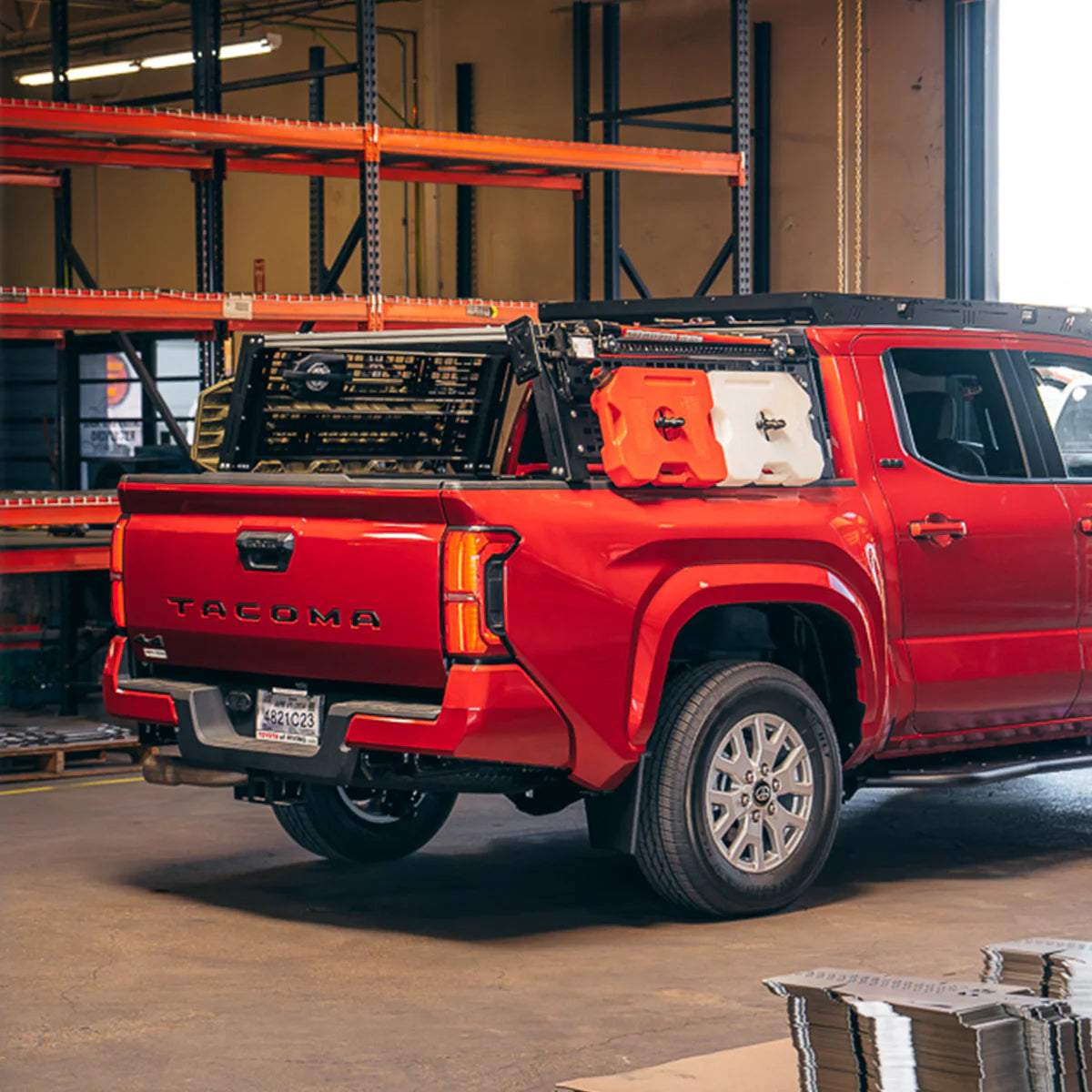

Show up ready for anything with this Overland bed rack system for all 2024+ Toyota Tacoma. Engineered by American designers and laser cut here in the USA, this bed rack is press-broken and welded to perfection, providing a seamless fit without sacrificing quality.
To protect from corrosion, these are professionally powder-coated in a durable black semi-gloss mini texture to defend against damage and corrosion. With 80% of the construction being aluminum, this translates into lightweight, incredibly sturdy, and low maintenance.

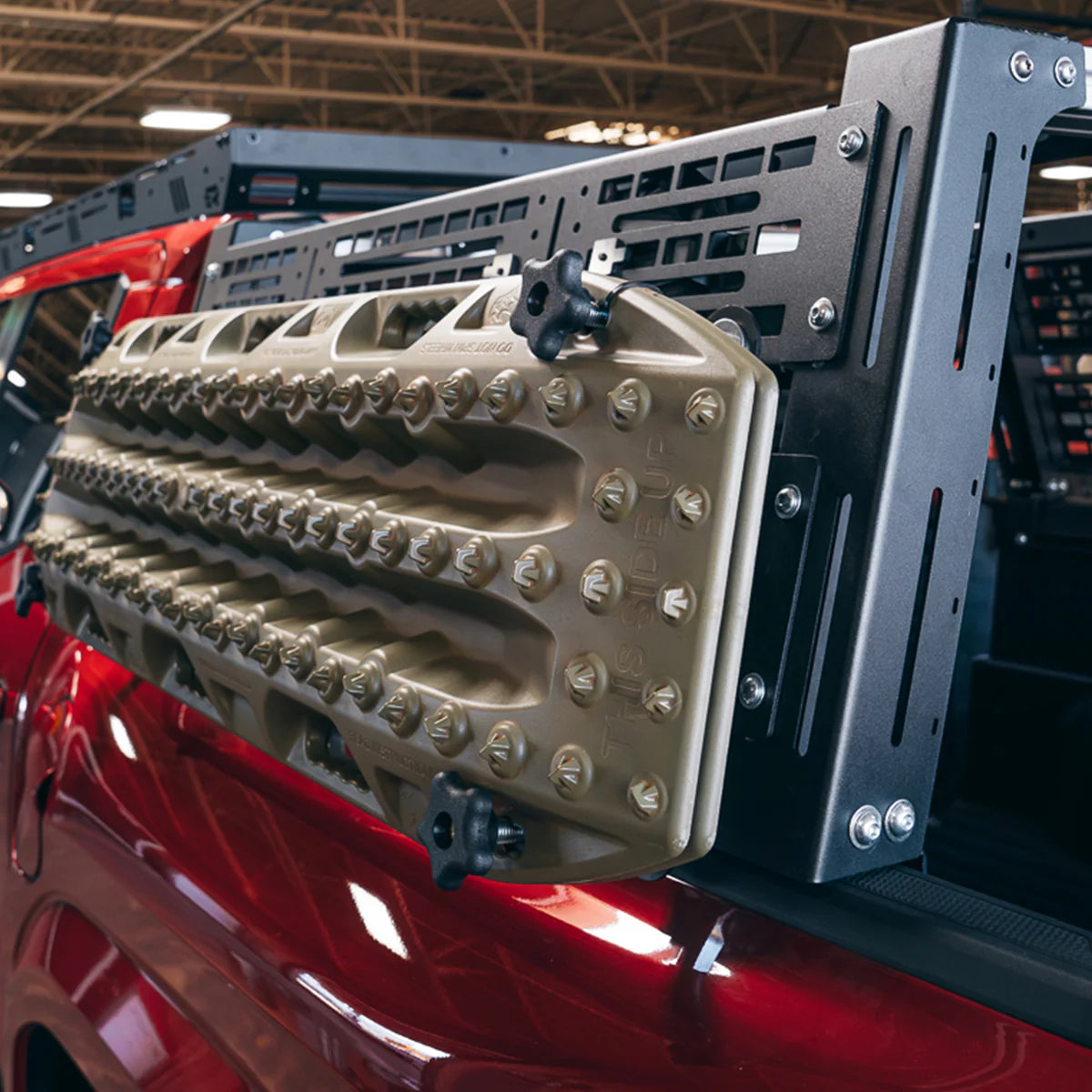

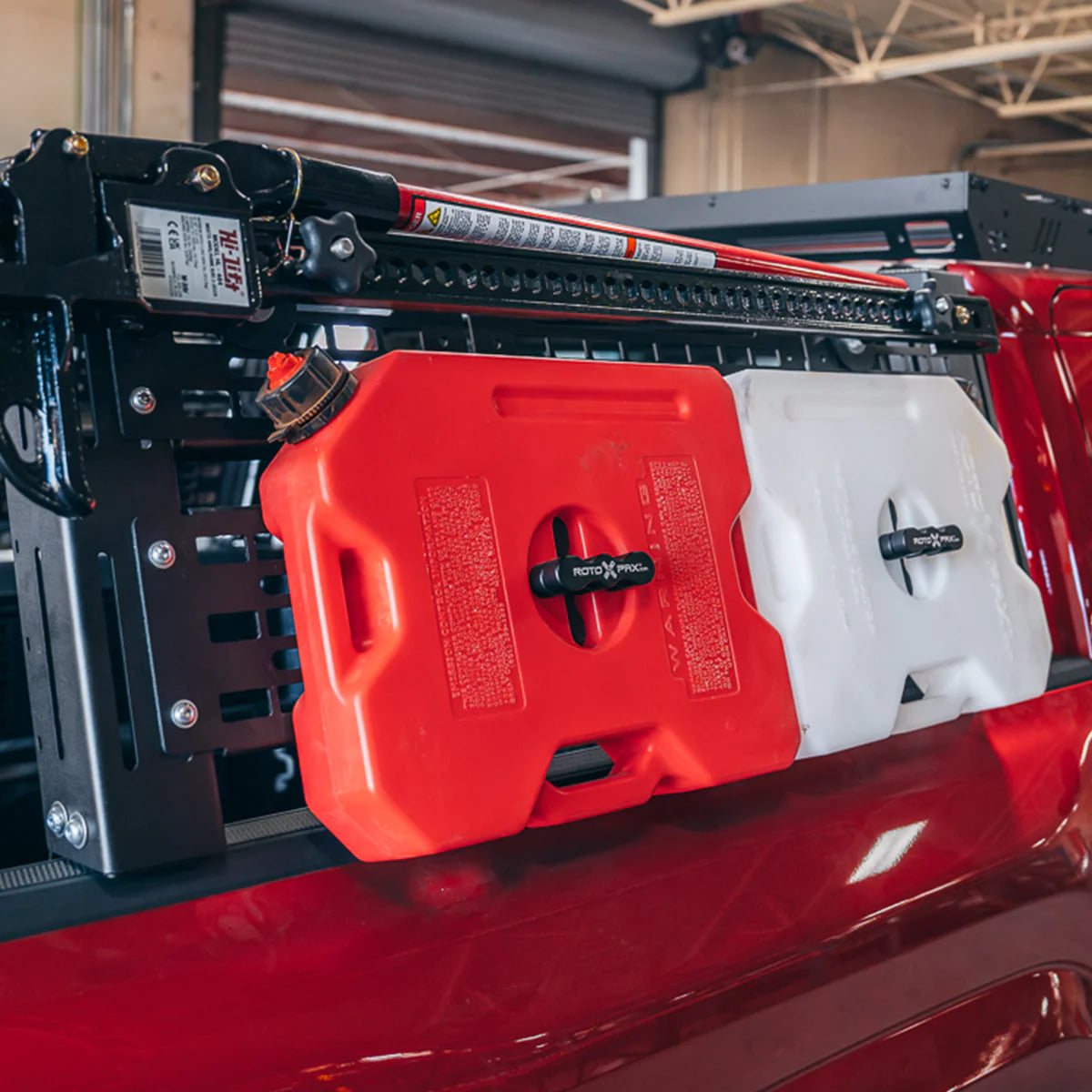

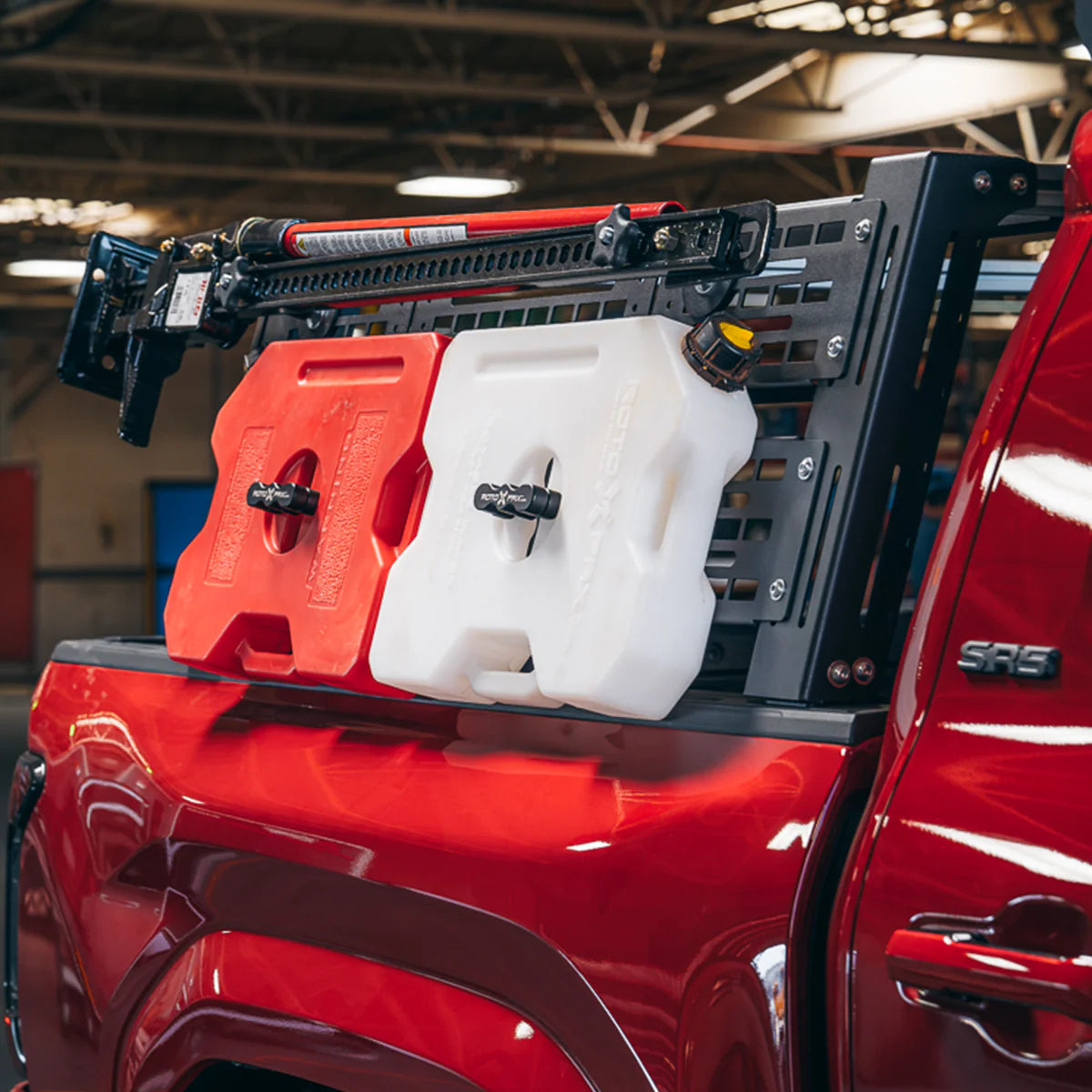

The added payload means you can mount your Roof Tent, Rotopax, tools, recovery gear, and more. It also utilizes our unique T-slot design, allowing for endless mounting possibilities.
FEATURES:
- Easy to install.
- Powder-coated with a durable black semi-gloss mini texture.
- Rated to exceed the weight limits of nearly any tent on the market.
- Lightweight (only weighs 55 lbs).

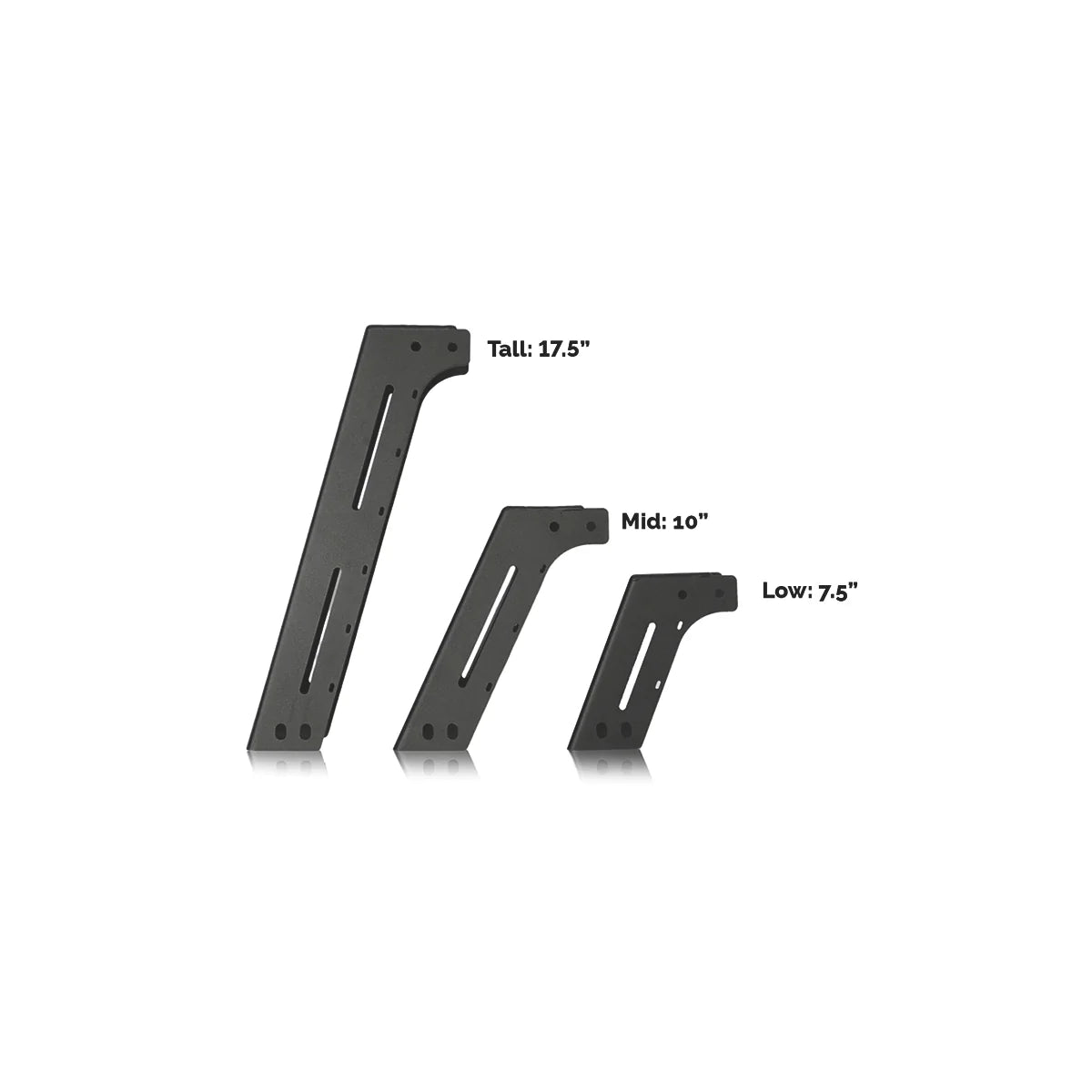

- Varying Height Options Available.
WEIGHT LIMIT
Approximate weight capacity: 1,100lbs

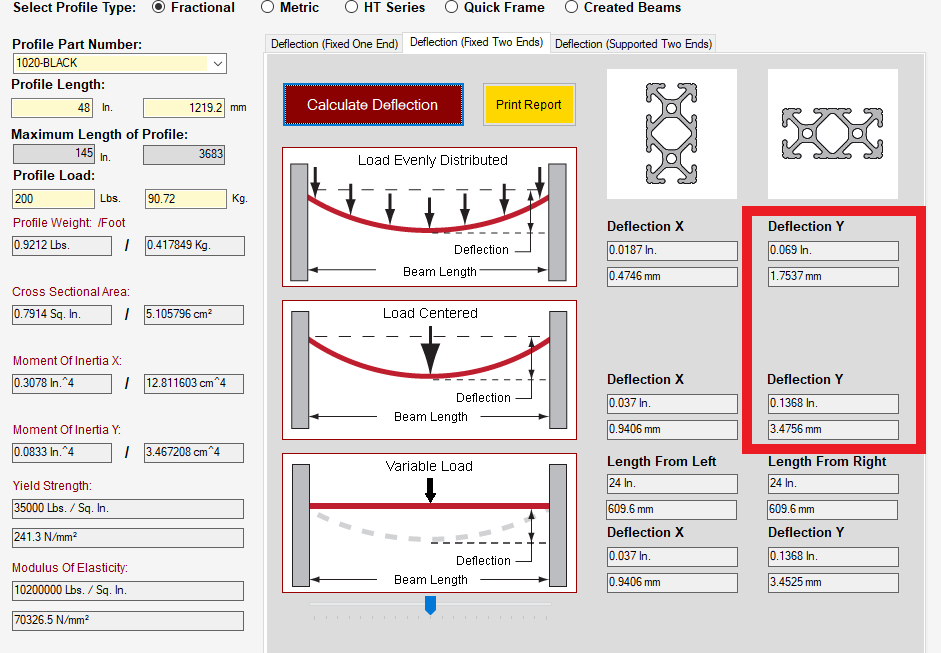

See the report on extrusion bars' weight limit performance ( DEFLECTION REPORT ). This provides all the technical data for the extrusion which is the "weakest link" in the bed rack, though they are not weak at all! Running the simulation for 1000lbs on a 53" extrusion supported on each end. Our bed rack mounts them in the Deflection Y configuration. This is 1000lbs applied to a single bar at the weakest point in the center and it shows a deflection of 0.195" and no failure.
NOTE:
We do not have a full analysis of our bed rack run through a simulation at this time, however, you can see that our rack can handle quite a bit of weight. Many customers run a large RTT up top with hi lifts or gas or recovery boards along the sides along with 360 degrees of lighting.
